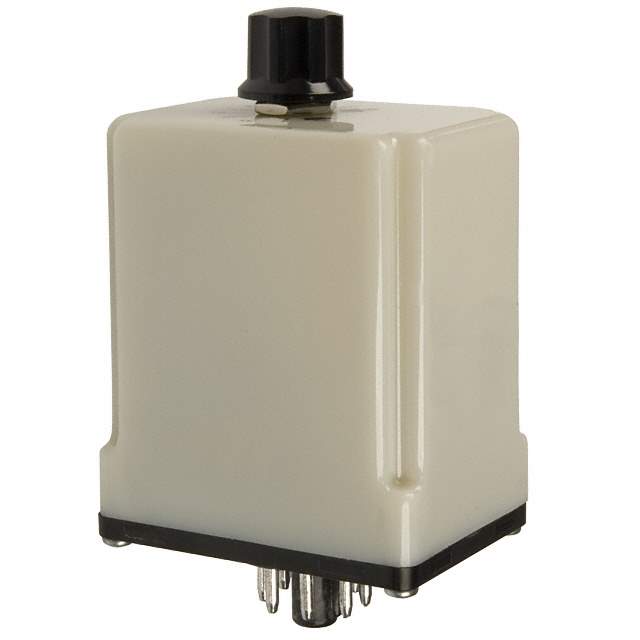

1-1393136-0 Real Image
Same model may have multiple batches, images only for reference.

1-1393136-0

Part No 1-1393136-0
Manufacturer TE Connectivity
Catalog Time Delay Relays
Description Time Delay Relay 120VAC 10A DPDT( (61.1mm 45.2mm 74.6mm)) Socket
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Coil Voltage (AC) 120 V
Contact Current Rating 10 A
Contact Material Cadmium, Silver
Depth 45.2 mm
Lead Free Contains Lead
Length 61.1 mm
Max Current Rating 10 A
Maximum Operating Temperature 55 °C
Max Voltage Rating (AC) 277 V
Max Voltage Rating (DC) 30 V
Min Operating Temperature -10 °C
Mount Socket
Number of Pins 8
RoHS Non-Compliant
Termination Circular
Throw Configuration DPDT
Voltage Rating (AC) 277 V
Win Source Part Number 1020291-1-1393136-0
Categories Time Delay Relays
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 1-1393136-0 CAD Model

Description

The TE Connectivity time delay relay is a circular termination relay with a contact material of cadmium and silver.

  • Manufacturer: TE Connectivity
  • Termination: Circular
  • Contact Material: Cadmium and Silver
  • Length: 61.1mm
  • Contact Current Rating: 10A
  • Pins: 8
  • Mounting: Socket
  • Throw Configuration: DPDT
  • Voltage Rating (AC Max): 277V
  • Voltage Rating (DC Max): 30V
  • Operating Temperature (Max): 55°C
  • Operating Temperature (Min): -10°C
  • Lead Content: Contains Lead
  • RoHS Compliance: Non-Compliant
  • Supply and Demand Status: Shortage
