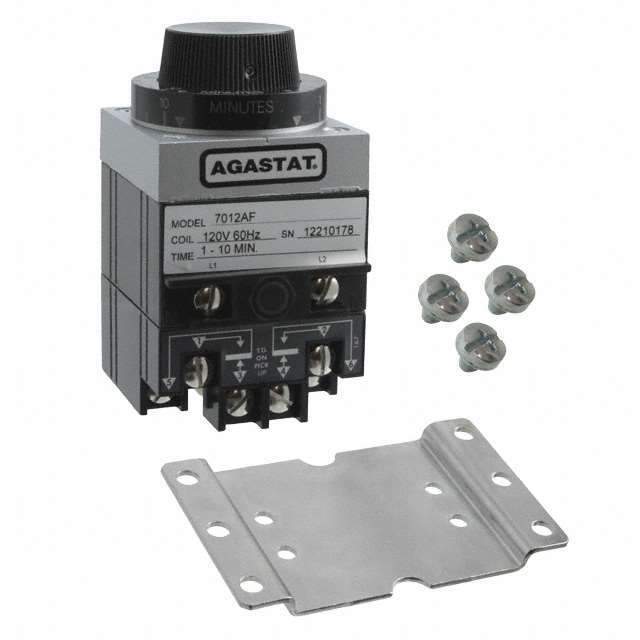

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr TE Connectivity Aerospace, Defense and Marine
Series 7000, AGASTAT
Package Bulk
Mounting Type Panel Mount
Relay Type Mechanical Relay
Function On-Delay
Circuit DPDT (2 Form C)
Delay Time 1.5 Sec ~ 15 Sec
Contact Rating @ Voltage 10A @ 240VAC
Voltage - Supply 120VAC
Termination Style Screw Terminal
Timing Adjustment Method Hand Dial
Timing Initiate Method Input Voltage
Base Product Number 7012
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0080
Other Names -1423157-5-SI,-7012AC-SI,14231575,7012AC-ND,1423157-5,A115726,1423157-5-ND,-1423157-5-SI-ND
Standard Package 1
Win Source Part Number 1039897-7012AC
Ultra Librarian 3D Model Ultra Librarian 7012AC CAD Model

Description

The 7000 series of time delay relays from TE Connectivity Aerospace, Defense and Marine is a reliable and efficient solution for industrial automation and controls.

  • Model: AGASTAT 7012AC
  • Circuit: DPDT (2 Form C)
  • Termination Style: Screw terminal
  • Function: On-delay
  • Delay Time: 1.5 seconds to 15 seconds
  • Timing Adjustment: Hand dial
  • Timing Initiate Method: Input voltage
  • Voltage Supply: 120VAC
  • Contact Rating: 10A @ 240VAC
  • Mount: Panel mount
  • Packaging: Bulk
  • Standard Package: 1
  • Alternative Parts (Cross-Reference): 7012AC1423157-5
  • ECCN: EAR99
  • REACH: Unaffected
  • RoHS: Non-compliant
