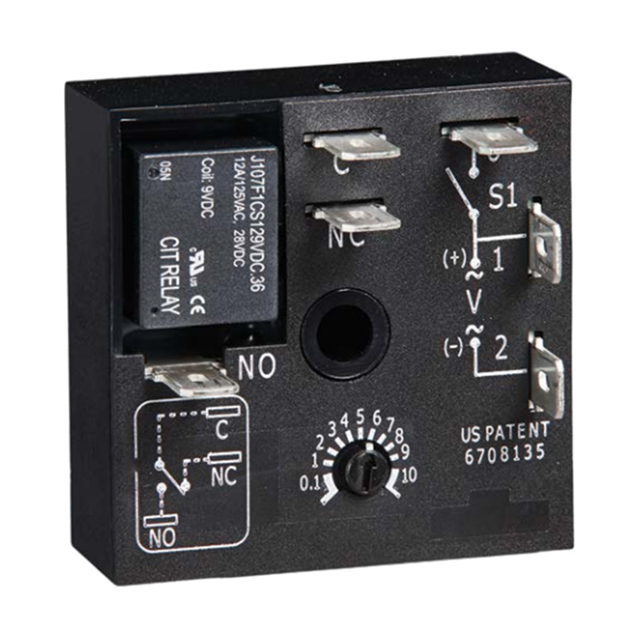

KRDS221 Real Image
Same model may have multiple batches, images only for reference.

KRDS221

Part No KRDS221
Manufacturer Littelfuse Inc.
Catalog Time Delay Relays
Description RELAY TIME DELAY 100SEC 10A 125V / One Shot Time Delay Relay SPDT (1 Form C) 1 Sec ~ 100 Sec Delay 10A @ 125VAC Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr Littelfuse Inc.
Series KRDS
Package Bulk
Mounting Type Chassis Mount
Relay Type Mechanical Relay
Function One Shot
Circuit SPDT (1 Form C)
Delay Time 1 Sec ~ 100 Sec
Contact Rating @ Voltage 10A @ 125VAC
Voltage - Supply 24VAC/DC
Termination Style Quick Connect - 0.250" (6.3mm)
Timing Adjustment Method Screwdriver Slot
Timing Initiate Method Input Voltage, Trigger Signal
MSL Level Not Applicable
ECCN EAR99
HTSUS 9107.00.8000
Other Names -1024-KRDS221
Standard Package 1
Win Source Part Number 1130282-KRDS221
Ultra Librarian 3D Model Ultra Librarian KRDS221 CAD Model

Description

The KRDS221 is an industrial automation and control time delay relay that has a one-shot function.

  • Function: One-Shot
  • Relay Type: Mechanical
  • Circuitry: SPDT (1 Form C)
  • Contact Rating: 10A @ 125VAC
  • Delay Time: Adjustable from 1 second to 100 seconds
  • Timing Adjustment Method: Screwdriver Slot
  • Trigger: Input Voltage or Trigger Signal
  • Voltage Supply: 24VAC/DC
  • Mounting: Chassis Mounted
  • Termination Style: Quick Connect - 0.250" (6.3mm)
  • Series: KRDS
  • Packaging: Bulk
  • Standard Package: 1
