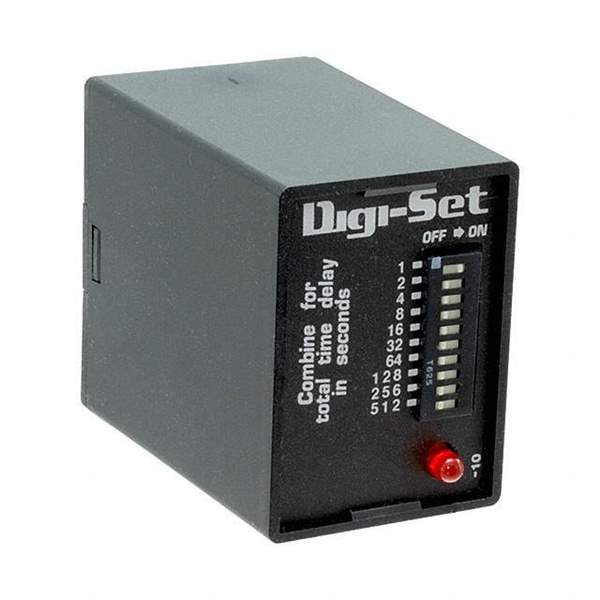

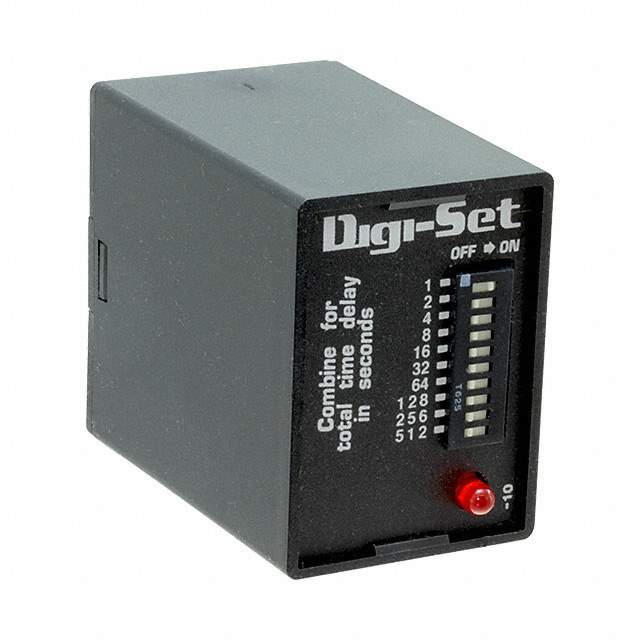

TDM230AL Real Image
Same model may have multiple batches, images only for reference.

TDM230AL

Part No TDM230AL
Manufacturer Littelfuse Inc.
Catalog Time Delay Relays
Description RELAY TIME DELAY 1023S 10A 120V / On-Delay Time Delay Relay DPDT (2 Form C) 1 Sec ~ 1023 Sec Delay 10A @ 120/240VAC Socketable
Datasheet
TDM230AL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr Littelfuse Inc.
Series TDM
Package Bulk
Mounting Type Socketable
Relay Type Mechanical Relay
Function On-Delay
Circuit DPDT (2 Form C)
Delay Time 1 Sec ~ 1023 Sec
Contact Rating @ Voltage 10A @ 120/240VAC
Voltage - Supply 230VAC
Termination Style Plug In, 8 Pin (Octal)
Timing Adjustment Method DIP Switches
Timing Initiate Method Input Voltage
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0075
Other Names -1024-TDM230AL,F10667
Standard Package 1
Win Source Part Number 981827-TDM230AL
Ultra Librarian 3D Model Ultra Librarian TDM230AL CAD Model

Description

The Littelfuse Inc. 928452 is a TDM series time delay relay with a DPDT (2 Form C) circuit.

  • Series: TDM
  • Circuit: DPDT (2 Form C)
  • Contact Rating: 10A @ 120/240VAC
  • Delay Time Range: 1 Sec ~ 1023 Sec
  • Timing Adjustment: DIP Switches
  • Timing Initiate Method: Input Voltage
  • Relay Type: Mechanical
  • Termination Style: Plug-In, 8 Pin (Octal)
  • Application: Industrial Automation and Controls
  • Voltage Supply: 230VAC
  • Socketable: Yes
  • ECCN: EAR99
  • Packaging: Bulk
  • Standard Package: 1
