Same model may have multiple batches, images only for reference.

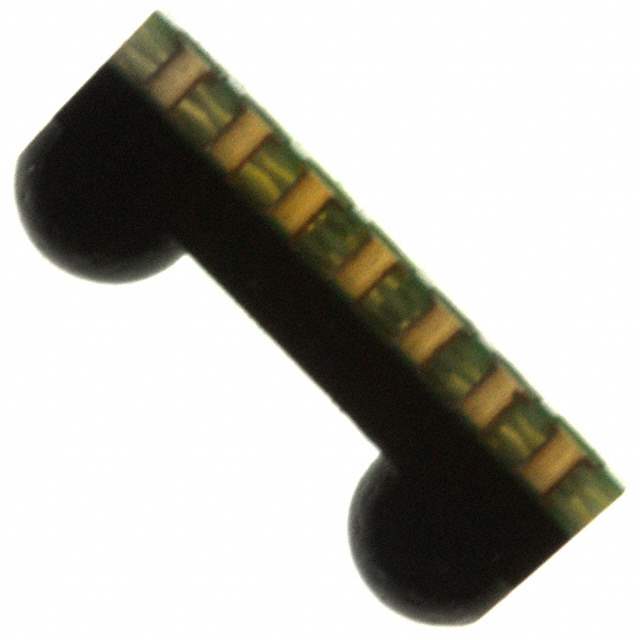

HSDL-3209-021 Real Image
Same model may have multiple batches, images only for reference.

HSDL-3209-021

Part No HSDL-3209-021
Manufacturer Lite-On Inc.
Catalog IrDA Transceiver Modules
Description TRANSCEIVER IRDA 115.2KBIT 7-SMD
Datasheet
HSDL-3209-021 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Lite-On Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Data Rate 115.2kbs (SIR)
Supply Voltage 2.4 V to 3.6 V
Idle Current, Typ @ 25°C 100μA
Link Range, Low Power 30cm
Orientation Side View
Temperature Range - Operating -25°C to 70°C
Size 7.0mm x 2.8mm x 1.6mm
Standards IrPHY 1.4
Shutdown Yes
Win Source Part Number 001702-HSDL-3209-021
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HSDL-3209-021 CAD Model

Description

The 001702-HSDL-3209-021 is a side view sensor manufactured by Lite-On Inc. It is a small electronic component with a size of 7.0mm x 2.8mm x 1.6mm. This product has a data rate of 115.2kbs (SIR) and a supply voltage of 2.4 V to 3.6 V. The product is known to be obsolete (EOL) and has a medium popularity in the market.
