Same model may have multiple batches, images only for reference.

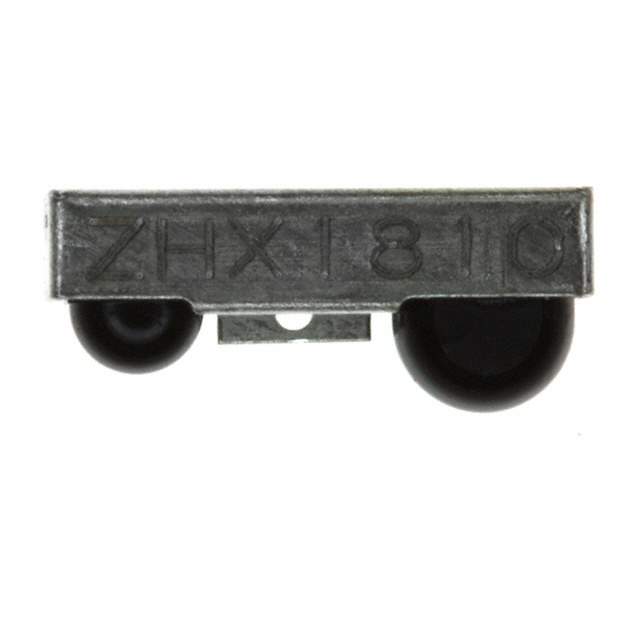

ZHX1810MV115TH2090TR Real Image
Same model may have multiple batches, images only for reference.

ZHX1810MV115TH2090TR

Part No ZHX1810MV115TH2090TR
Manufacturer Zilog
Catalog IrDA Transceiver Modules
Description IRDA MODULE 115.2KBPS 6SMD / 115.2kbs (SIR) IRDA Transceiver Side View
Datasheet
ZHX1810MV115TH2090TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>IrDA Transceiver Modules
Mfr Zilog
Package Cut Tape (CT)
Product Status Obsolete
Data Rate 115.2kbs (SIR)
Voltage - Supply 2.4 V ~ 5.5 V
Link Range, Low Power 1m
Orientation Side View
Temperature Range - Operating -30°C ~ 85°C
Size 9.1mm x 3.8mm x 2.7mm
Standards IrPHY 1.4
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Other Names ZHX1810MV115TH209,Q5028886,ZHX1810MV115TH209-ND,269-4500-1,269-4500-2
Standard Package 2,000
Win Source Part Number 1106251-ZHX1810MV115TH2090TR
Ultra Librarian 3D Model Ultra Librarian ZHX1810MV115TH2090TR CAD Model

Description

The Zilog ZHX1810MV115TH2090TR is an IrDA transceiver module that belongs to the sensors and transducers category. It has a data rate of 115.2kbs (SIR) and a link range of 1m for low power.

  • Data Rate: 115.2kbs (SIR)
  • Link Range: 1m (Low Power)
  • Voltage Range: 2.4 V ~ 5.5 V
  • Temperature Range: -30°C ~ 85°C
  • Package: Cut Tape (CT)
