Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Linear Technology
Packaging Tube
Type Hot Swap Controller, Monitor
Number of Channels 1
Internal Switch(s) Yes
Applications General
Features Thermal Limit
Programmable Features Auto Retry, Current Limit, Fault Timeout, Latched Fault, OVP, UVLO
Operating Supply Voltage 2.9 V ~ 26.5 V
Current - Output (Maximum) 2A
Operating Temperature Range -40°C ~ 85°C
Operating Supply Current 1.6mA
Mounting SMD
Package 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Manufacturer Package 20-TSSOP-EP
Feature Pins FB, /FLT, IMON, ISET, OV, PG, TIMER, UV
Win Source Part Number 783938-LTC4217IFE#PBF
Popularity Medium
Supply and Demand Status Limited
Family Name LTC4217
Introduction Date August 25, 2008
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LTC4217IFE#PBF CAD Model

Description

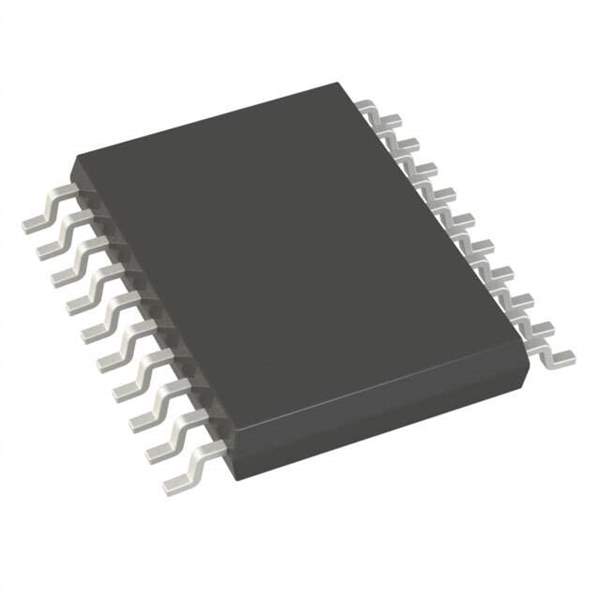

LTC4217IFE#PBF - Hot Swap Controller from Linear Technology

The LTC4217IFE#PBF is a sophisticated hot swap controller designed by Linear Technology to ensure safe insertion and removal of electronic boards from live backplanes and other power sources. This component provides a controlled ramp-up of the board supply voltage to prevent glitches on the power bus, protect the connectors, and avoid any damage to sensitive components due to inrush currents.

Key Features

  • Wide Operating Range: The device operates with supply voltages from 2.9V to 26.5V, making it suitable for a broad range of applications.
  • Adjustable Current Limit: Users can set the overcurrent threshold according to their specific needs, ensuring protection against excessive current draw.
  • Fast Overcurrent Protection: The LTC4217IFE#PBF reacts quickly to overcurrent conditions, providing rapid response to protect the circuit.
  • Circuit Breaker Function: An integrated circuit breaker function helps to prevent catastrophic failures by disconnecting the load in case of persistent overcurrent conditions.
  • Power Good Output: A "power good" status output is available to indicate when the output voltage is within the regulated range, which is useful for sequencing and system monitoring.
  • High Availability: The device features an automatic retry after a fault, enhancing system reliability and uptime.
  • Thermal Shutdown: To protect against overheating, the LTC4217IFE#PBF includes a thermal shutdown mechanism that turns off the device if it exceeds a certain temperature threshold.

Applications

The LTC4217IFE#PBF is ideal for a variety of applications that require hot swapping capabilities, such as:

  • RAID Systems
  • Servers and Network Routers
  • Industrial Computers
  • Telecommunications Equipment

Product Package and Quality

This hot swap controller comes in a robust 16-lead TSSOP package with an exposed pad for enhanced thermal performance. The LTC4217IFE#PBF is designed to meet the stringent quality standards expected of Linear Technology products, ensuring reliable performance in critical applications.

With its comprehensive protection features and flexible design, the LTC4217IFE#PBF hot swap controller is an essential component for any system that demands safe and seamless power management during board insertion and removal.
