Same model may have multiple batches, images only for reference.

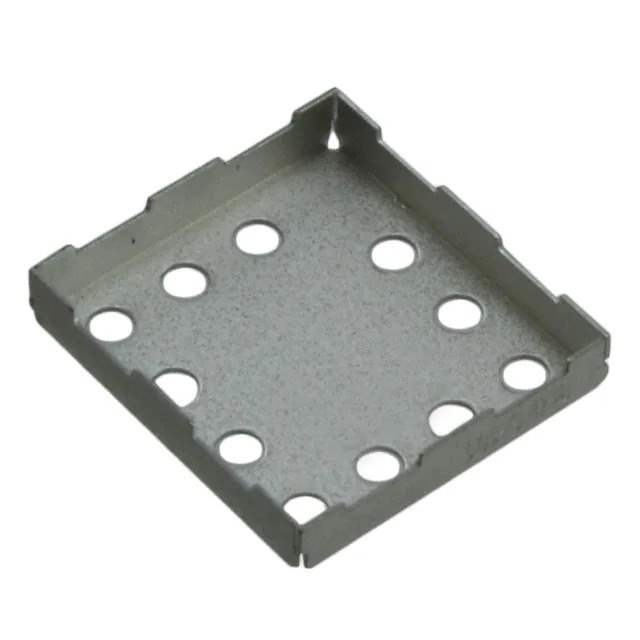

BMI-S-101 Real Image
Same model may have multiple batches, images only for reference.

BMI-S-101

Part No BMI-S-101
Manufacturer Laird Technologies EMI
Catalog RF Shields
Description RF SHIELD 0.5"X0.538" SOLDER 1PC / RF Shield Shield, 1-Piece 0.512" (13.00mm) X 0.538" (13.66mm) Vent Holes in Pattern Surface Mount
Datasheet
BMI-S-101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Shields
Mfr Laird Technologies EMI
Series SMT 1 Piece
Package Tape & Reel
Product Status Active
Type Shield, 1-Piece
Height - Overall 0.100" (2.54mm)
Length - Overall 0.538" (13.66mm)
Width - Overall 0.512" (13.00mm)
Ventilation Vent Holes in Pattern
Mounting Type Surface Mount
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8529.90.9800
Win Source Part Number 843894-BMI-S-101
Ultra Librarian 3D Model Ultra Librarian BMI-S-101 CAD Model

Description

The Laird Technologies EMI BMI-S-101 is a 1-piece surface mount shield designed for RF and wireless applications.

  • Length: 0.538" (13.66mm)
  • Height: 0.100" (2.54mm)
  • Width: 0.512" (13.00mm)
  • Mounting: Surface Mount
  • Package: Tape and Reel
  • Ventilation: Vent holes in the pattern
