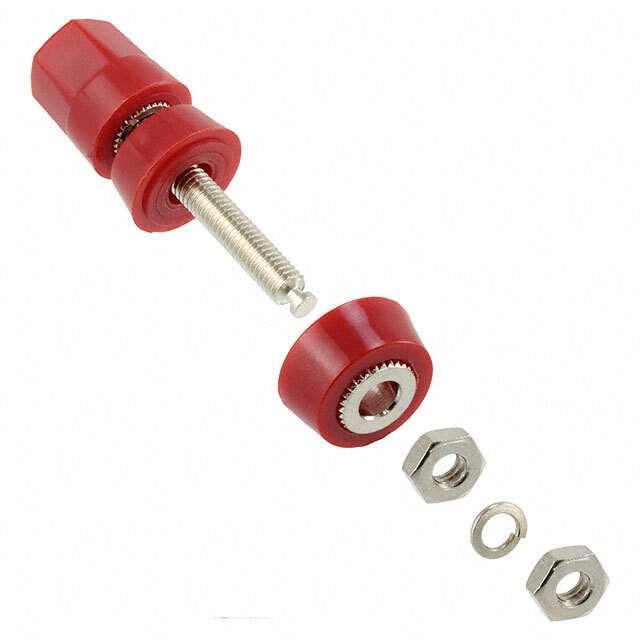

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Banana and Tip Connectors - Binding Posts
Mfr Keystone Electronics
Package Bulk
Product Status Active
Type Standard
Head Style Hex
Termination Threaded and Turret
Termination Thread 10-32
Current Rating (Amps) 30 A
Material - Body Brass
Plating - Body Nickel
Color Red
Cross Hole Diameter 0.093" (2.36mm)
Head Size 0.480" OD (12.19mm)
Material - Insulation Polyamide (PA), Nylon
Nut Material Brass
Nut Plating Nickel
Voltage Rating 1000VAC
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 545874-4093
Ultra Librarian 3D Model Ultra Librarian 4093 CAD Model

Description

The 545874-4093 is a red binding post connector used in electrical applications.

  • Color: Red
  • Application: Electrical applications
  • Voltage Rating: 1000VAC
  • Termination Style: Threaded and Turret
  • Body Material: Brass
  • Insulation Material: Polyamide (PA)
  • Current Rating: 30A
  • Manufacturer: Keystone Electronics
  • Status: Active
  • Packaging: Bulk, 1 piece per package
