Products specifications

Category Connectors, Interconnects>Banana and Tip Connectors - Jacks, Plugs
Mfr Pomona Electronics
Package Bulk
Type Banana Plug, Stackable
Gender Male
Plug/Mating Plug Diameter Standard Banana
Mounting Type Free Hanging (In-Line)
Termination Solderless
Insulation Non-Mating End Insulated
Features Set Screw, Safety Collar
Color Orange
Wire Gauge 18-22 AWG
Contact Finish Nickel
Contact Material Beryllium Copper
Body Material Polypropylene (PP)
Temperature Range - Operating 50°C
Base Product Number 1825
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Names 1659452,1825-3-NDR,18253,5935003242449,1825-3-ND,501-1329
Standard Package 1
Win Source Part Number 1176640-1825-3
Ultra Librarian 3D Model Ultra Librarian 1825-3 CAD Model

Description

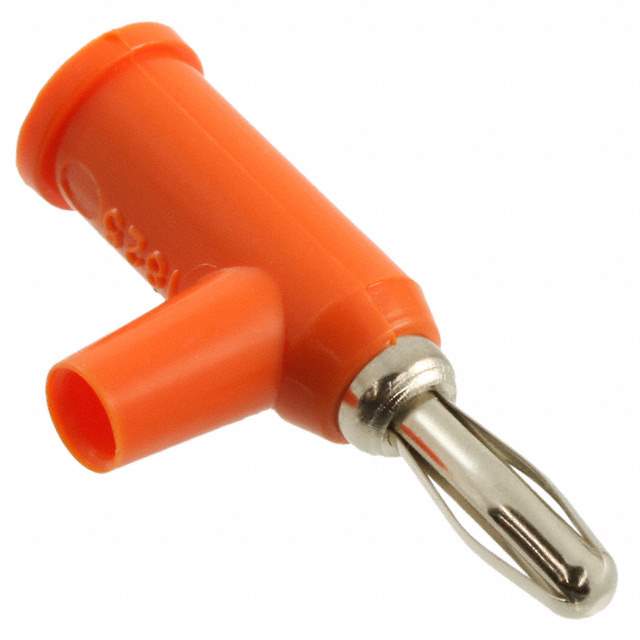

The Pomona Electronics 1825-3 is a male stackable banana plug connector.

  • Color: Orange
  • Features: Safety Collar, Set Screw
  • Termination Type: Solderless
  • Contact Finish: Nickel
  • Package: Bulk
  • Standard Package: 1
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.69
  • MSL Level: Not Applicable
