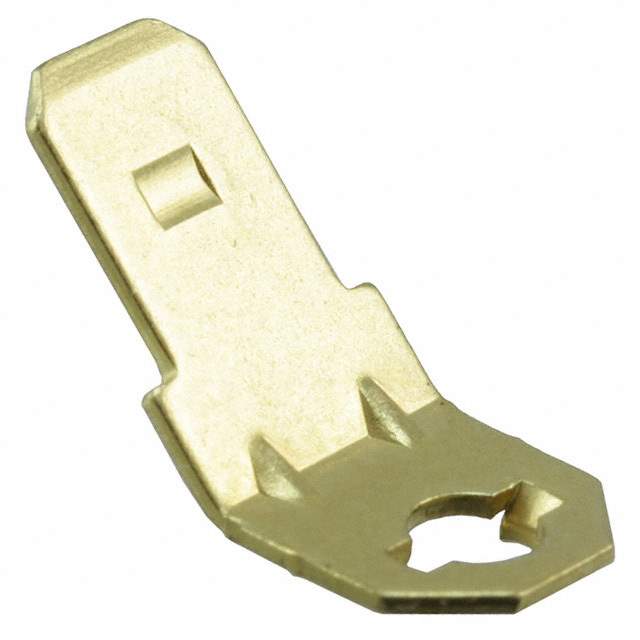

1271 Real Image1 1271 Real Image2
Same model may have multiple batches, images only for reference.
1271 Real Image1 1271 Real Image2
1271 Real Image1 1271 Real Image2
Same model may have multiple batches, images only for reference.

1271

Part No 1271
Manufacturer Keystone Electronics
Catalog Terminals
Description CONN QC TAB 0.187 / 0.187" (4.75mm) Quick Connect Male Screw, Rivet, Stud Connector Non-Insulated
Datasheet
1271 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Mfr Keystone Electronics
Series -
Package Bulk
Terminal Type Angled - 45°
Gender Male
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length -
Length - Overall -
Termination Screw, Rivet, Stud
Wire Gauge -
Insulation Non-Insulated
Mounting Type Board, Chassis
Features UL Approved
Color -
Contact Material Brass
Contact Finish -
Insulation Diameter -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Standard Package 100 pcs
Win Source Part Number 1380514-1271
Ultra Librarian 3D Model Ultra Librarian 1271 CAD Model

Description

The Keystone Electronics Male Quick Disconnect Connector is a reliable and durable terminal connector designed for various applications in the electronics industry.

  • Manufacturer: Keystone Electronics
  • Insulation: Non-Insulated
  • Material: Brass
  • Tab Width: 0.187" (4.75mm)
  • Tab Thickness: 0.020" (0.51mm)
  • Terminal Type: Angled-45°
  • Approval: UL
  • Package: Bulk
  • Package Quantity: 100 pcs
  • Mounting: Board and Chassis
  • Status: Active
