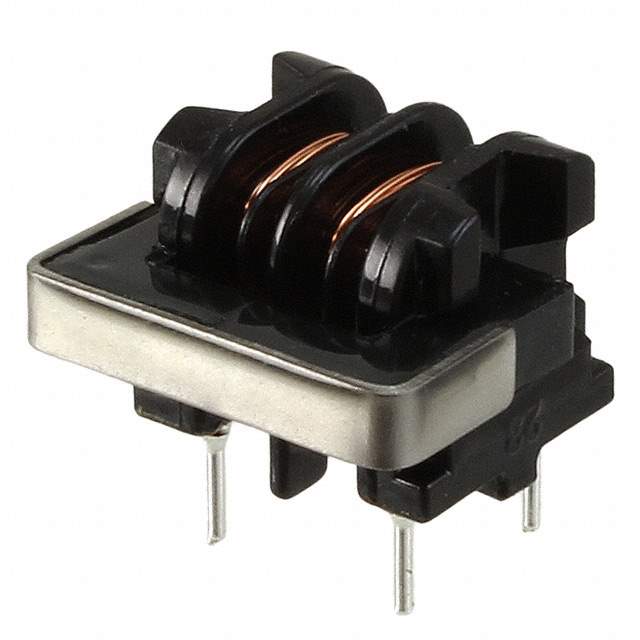

SU9HF-05050 Real Image
Same model may have multiple batches, images only for reference.

SU9HF-05050

Part No SU9HF-05050
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 5 mH @ 1 kHz
Current Rating (Max) 500mA
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max) 0.472" (12.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU9HF
Other Names UALSU9HF050500,399-10715
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276484-SU9HF-05050
Ultra Librarian 3D Model Ultra Librarian SU9HF-05050 CAD Model

Description

The SU series common mode choke is designed for use in power line applications.

  • Voltage Rating: 250V AC
  • Current Rating: 500mA
  • Inductance: 5 mH @ 1 kHz
  • Mounting Type: Through hole
  • Package/Case: Vertical, 4 PC pin
  • Height: 0.472" (12.00mm)
  • Dimension: 0.669" L x 0.610" W (17.00mm x 15.50mm)
  • Package: Bulk
  • Standard Package Quantity: 1,000
  • Temperature Range: -25°C ~ 120°C
  • Application: Filtering of common mode noise
