Same model may have multiple batches, images only for reference.

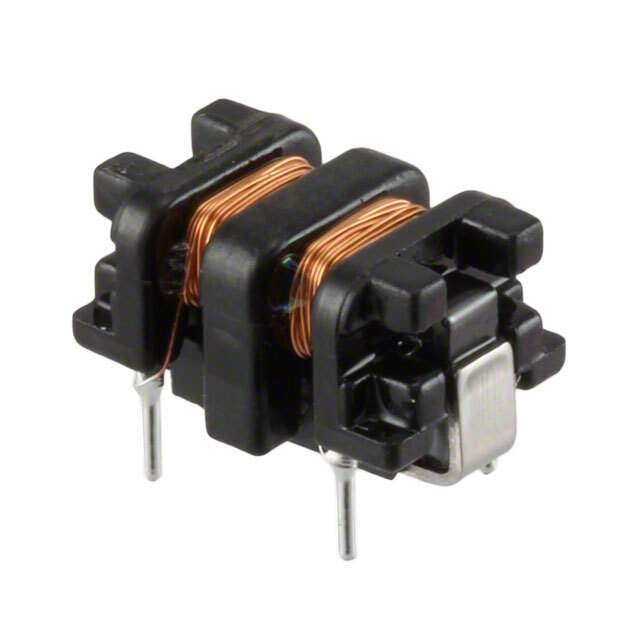

SU7VC-05011 Real Image
Same model may have multiple batches, images only for reference.

SU7VC-05011

Part No SU7VC-05011
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.1 mH @ 1 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 840mOhm
Voltage Rating - AC 125V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.591" L x 0.394" W (15.00mm x 10.00mm)
Height (Max) 0.335" (8.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU7VC
Other Names 399-10701,UALSU7VC050110
Standard Package 1,800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276500-SU7VC-05011
Ultra Librarian 3D Model Ultra Librarian SU7VC-05011 CAD Model

Description

The SU Series Common Mode Choke is a power line filter type electronic component manufactured by KEMET.

  • Voltage Rating: 125V AC
  • Current Rating (Max): 500mA
  • Inductance @ Frequency: 1.1mH @ 1 kHz
  • DC Resistance (DCR) (Max): 840mOhm
  • Mounting Type: Through Hole
  • Package / Case: Vertical, 4 PC Pin
  • Temperature Range - Operating: -25°C to 120°C
  • Dimension: 0.591” L x 0.394” W (15.00mm x 10.00mm)
  • Standard Package: 1,800 units
