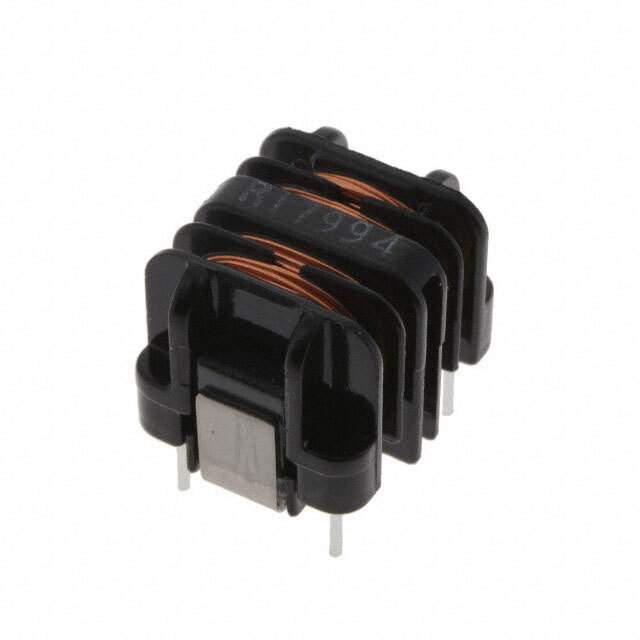

SU10VFC-R17016 Real Image
Same model may have multiple batches, images only for reference.

SU10VFC-R17016

Part No SU10VFC-R17016
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.6 mH @ 1 kHz
Current Rating (Max) 1.7A
DC Resistance (DCR) (Max) 210mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.709" L x 0.610" W (18.00mm x 15.50mm)
Height (Max) 0.591" (15.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU10VF
Other Names UALSU10VR17016,399-SU10VFC-R17016
Standard Package 700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276475-SU10VFC-R17016
Ultra Librarian 3D Model Ultra Librarian SU10VFC-R17016 CAD Model

Description

The Kemet Common Mode Choke is a high-quality filter designed to reduce electromagnetic interference in electronic devices.

  • Voltage Rating: 250V
  • Current Rating: 1.7A
  • Height: 0.591" (15.00mm)
  • Number of Lines: 2
  • Inductance: 1.6 mH @ 1 kHz
  • DC Resistance (DCR): 210mOhm
  • Popularity: Medium
  • Supply: Sufficient supply
