Same model may have multiple batches, images only for reference.

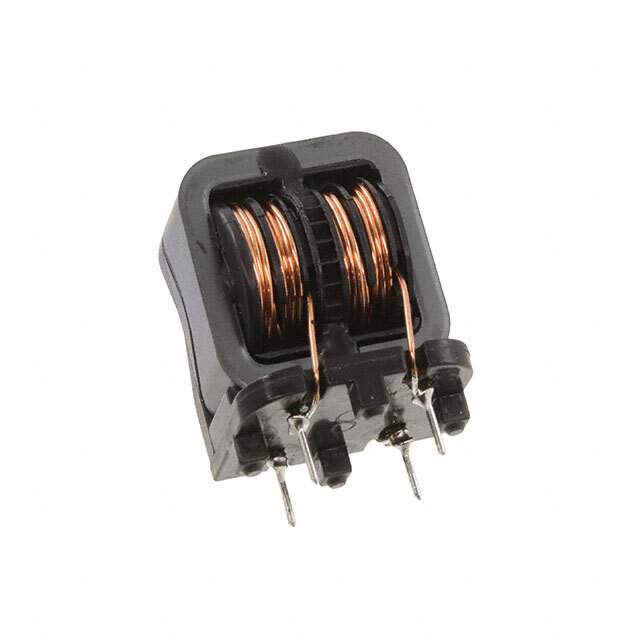

SSRH24NV-16470 Real Image
Same model may have multiple batches, images only for reference.

SSRH24NV-16470

Part No SSRH24NV-16470
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSRH
Package Bulk
Number of Lines 2
Inductance @ Frequency 47 mH @ 10 kHz
Current Rating (Max) 1.6A
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Height (Max) 1.220" (31.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSRH24N
Other Names 399-19066,UALS24V1647000
Standard Package 240
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276532-SSRH24NV-16470
Ultra Librarian 3D Model Ultra Librarian SSRH24NV-16470 CAD Model

Description

The KEMET SSRH24NV series common mode choke filter is designed to reduce electromagnetic interference (EMI) and radio frequency interference (RFI).

  • Series: SSRH24NV
  • Manufacturer: KEMET
  • Package: Bulk
  • Voltage Rating: 250V AC
  • Maximum Current Rating: 1.6A
  • Height: 1.220 inches (31.00mm)
  • Lines: Two
  • Inductance: 47 mH @ 10 kHz
  • Operating Temperature Range: -25°C to 120°C
  • Mounting: Through hole on a vertical, 4 PC pin package
  • REACH: Not affected
  • ECCN: EAR99
