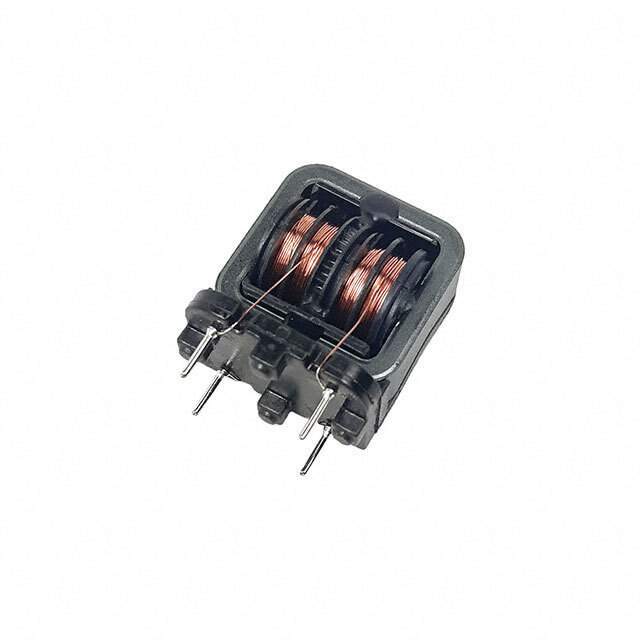

SSR21NVS-15082 Real Image
Same model may have multiple batches, images only for reference.

SSR21NVS-15082

Part No SSR21NVS-15082
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 8.2 mH @ 10 kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 130mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.866" L x 0.630" W (22.00mm x 16.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR21NV
Other Names 399-19514,UALN21VS150820
Standard Package 450
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276559-SSR21NVS-15082
Ultra Librarian 3D Model Ultra Librarian SSR21NVS-15082 CAD Model

Description

The Kemet 1276559-SSR21NVS-15082 is a common mode choke in the SSR series.

  • Manufacturer: Kemet
  • Product Name: 1276559-SSR21NVS-15082
  • Series: SSR
  • Voltage Rating: 250V AC
  • Maximum Current Rating: 1.5A
  • Height (max): 1.063" (27.00mm)
  • Lines: Two
  • Inductance: 8.2 mH @ 10 kHz
  • DC Resistance (DCR): 130mOhm (max)
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Temperature Range: -25°C to 120°C
  • Dimension: 0.866" L x 0.630" W (22.00mm x 16.00mm)
  • MSL Level: Not applicable
  • REACH: REACH unaffected
  • HTSUS: 8548.00.0000
  • Other Names: 399-19514 and UALN21VS150820
  • Base Product Number: SSR21NV
  • Approval Agency: No approval agency
