Same model may have multiple batches, images only for reference.

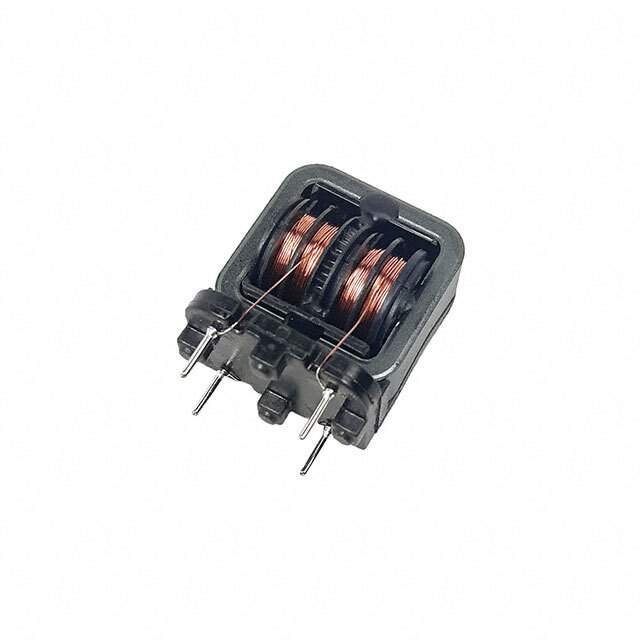

SSR21NVS-10160 Real Image
Same model may have multiple batches, images only for reference.

SSR21NVS-10160

Part No SSR21NVS-10160
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 16 mH @ 10 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 290mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.866" L x 0.630" W (22.00mm x 16.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR21NV
Other Names UALN21VS101600,399-19511
Standard Package 450
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276620-SSR21NVS-10160
Ultra Librarian 3D Model Ultra Librarian SSR21NVS-10160 CAD Model

Description

The KEMET SSR21NVS-10160 is a common mode choke filter that has a voltage rating of 250V and a maximum current rating of 1A.

  • Voltage Rating: 250V
  • Maximum Current Rating: 1A
  • Inductance: 16mH @ 10kHz
  • DC Resistance: 290mOhm
  • Package: Vertical, 4 PC pin
  • Temperature Range: -25 to 120 degrees Celsius
