Same model may have multiple batches, images only for reference.

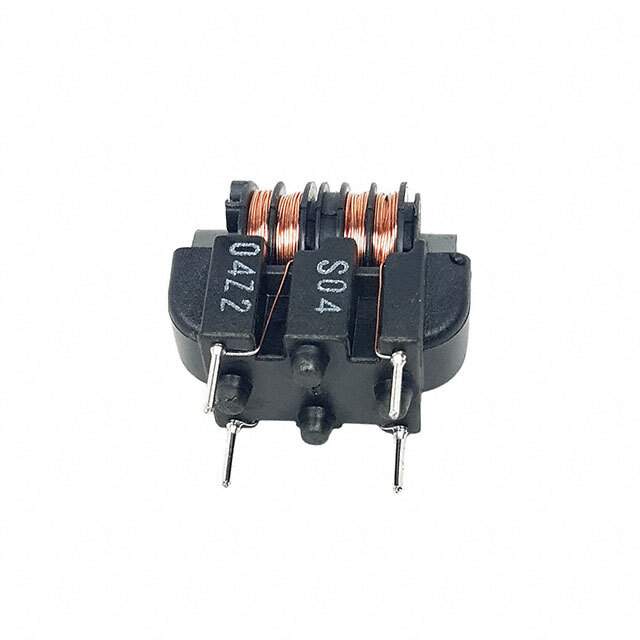

SSR10VS-22026 Real Image
Same model may have multiple batches, images only for reference.

SSR10VS-22026

Part No SSR10VS-22026
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 2.6 mH @ 10 kHz
Current Rating (Max) 2.2A
DC Resistance (DCR) (Max) 100mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.925" L x 0.512" W (23.50mm x 13.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10VS
Other Names 399-19045,UALR10VS220260
Standard Package 600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276610-SSR10VS-22026
Ultra Librarian 3D Model Ultra Librarian SSR10VS-22026 CAD Model

Description

The Kemet SSR Common Mode Choke with the Win Source Part Number 1276610-SSR10VS-22026 is a two-line filter that is ideal for use in various applications.

  • Manufacturer: Kemet
  • Series: SSR series
  • Type: Through-hole
  • Voltage Rating: 250V
  • Current Rating (max): 2.2A
  • Inductance: 2.6 mH @ 10 kHz
  • DC Resistance (DCR) (max): 100mOhm
  • Temperature Range: -25°C to 120°C
  • Height: 0.827" (21.00mm)
  • Dimension: 0.925" L x 0.512" W (23.50mm x 13.00mm)
