Same model may have multiple batches, images only for reference.

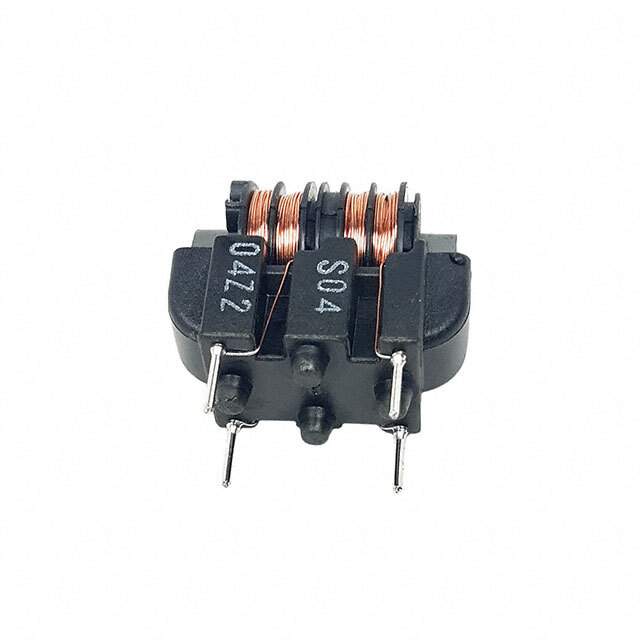

SSR10VS-06385 Real Image
Same model may have multiple batches, images only for reference.

SSR10VS-06385

Part No SSR10VS-06385
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 38.5 mH @ 10 kHz
Current Rating (Max) 600mA
DC Resistance (DCR) (Max) 1.2Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.925" L x 0.512" W (23.50mm x 13.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10VS
Other Names UALR10VS063850,399-19038
Standard Package 600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276588-SSR10VS-06385
Ultra Librarian 3D Model Ultra Librarian SSR10VS-06385 CAD Model

Description

The SSR10VS-06385 is a common mode choke filter manufactured by KEMET.

  • Voltage Rating - AC: 250V
  • Current Rating (Max): 600mA
  • Inductance @ frequency: 38.5 mH @ 10 kHz
  • DC Resistance (DCR) (Max): 1.2Ohm
  • Mounting: through hole technology
  • Packaged: in a vertical, 4 PC pin case/package
  • Temperature Range: -25°C to 120°C
  • MSL Level: not applicable
  • REACH Status: REACH Unaffected
  • HTSUS Code: 8548.00.0000
