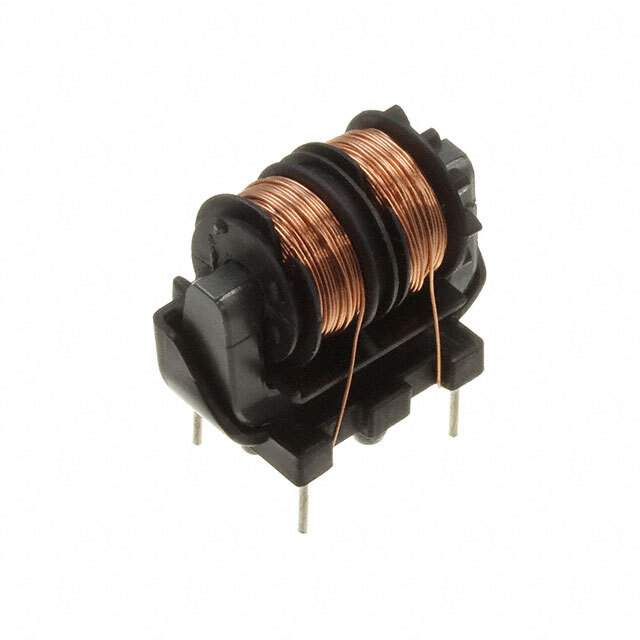

SSR10V-13097 Real Image
Same model may have multiple batches, images only for reference.

SSR10V-13097

Part No SSR10V-13097
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 9.7 mH @ 10 kHz
Current Rating (Max) 1.3A
DC Resistance (DCR) (Max) 270mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.925" L x 0.512" W (23.50mm x 13.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10V
Other Names UALR10V1309700,399-19032
Standard Package 600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276552-SSR10V-13097
Ultra Librarian 3D Model Ultra Librarian SSR10V-13097 CAD Model

Description

This common mode choke is a high-quality electronic component that is perfect for filtering common mode noise.

  • Package: Bulk
  • Standard Package: 600
  • Voltage Rating-AC: 250V
  • Current Rating (Max): 1.3A
  • Height (Max): 0.827" (21.00mm)
  • Lines: 2
  • Inductance @ frequency: 9.7 mH @ 10 kHz
  • DC Resistance (DCR) (Max): 270mOhm
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Temperature Range - operating: -25°C ~ 120°C
  • Series: SSR
  • Manufacturer: KEMET
