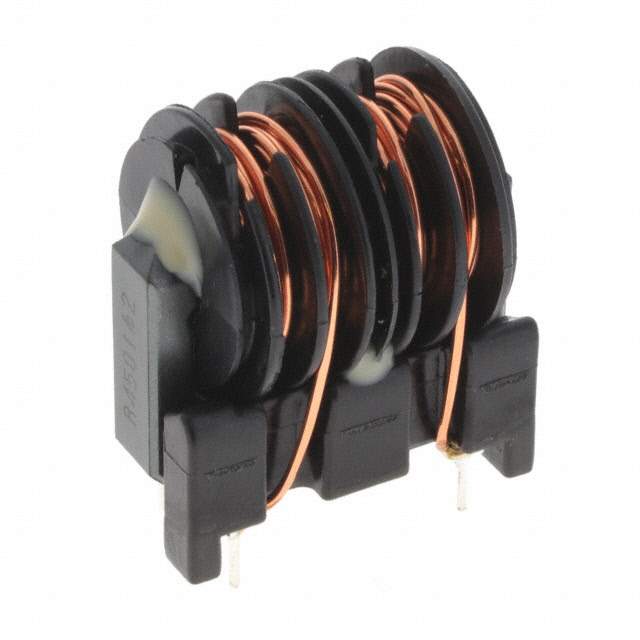

SS30V-R450017 Real Image
Same model may have multiple batches, images only for reference.

SS30V-R450017

Part No SS30V-R450017
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.7 mH @ 1 kHz
Current Rating (Max) 4.5A
DC Resistance (DCR) (Max) 60mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.220" L x 0.886" W (31.00mm x 22.50mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS30V
Other Names 399-SS30V-R450017,UAL30VR4500170
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276734-SS30V-R450017
Ultra Librarian 3D Model Ultra Librarian SS30V-R450017 CAD Model

Description

The SS30V-R450017 is a common mode choke filter that is designed to provide high-performance filtering for power line applications.

  • Voltage Rating: 250V
  • Current Rating: 4.5A
  • Made with: High-quality materials
  • Designed to: Meet the highest standards of quality and reliability
  • Commonly used in: Applications such as power supplies, lighting systems, and industrial equipment
  • Highly efficient and provides: Excellent filtering performance
