Same model may have multiple batches, images only for reference.

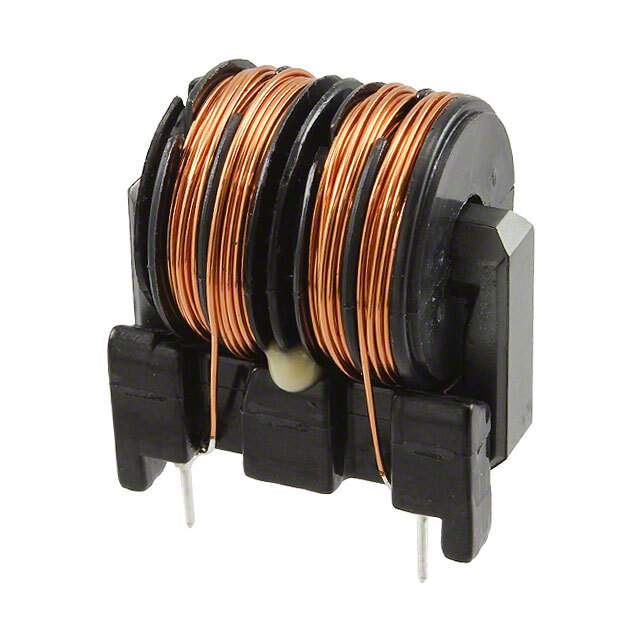

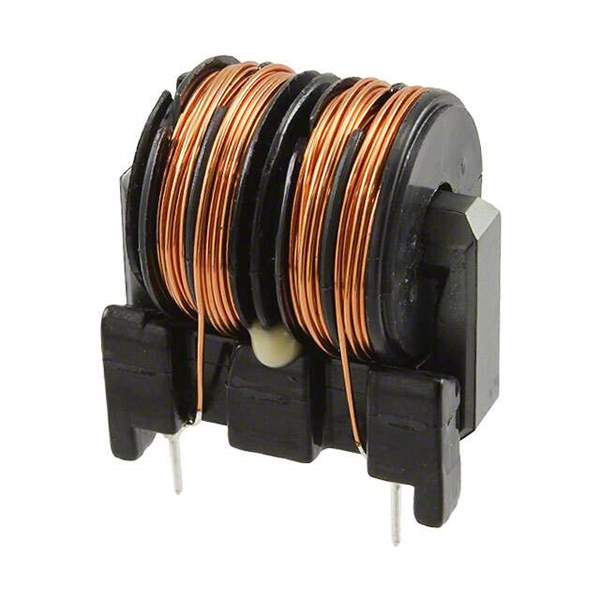

SS30V-R400028 Real Image
Same model may have multiple batches, images only for reference.

SS30V-R400028

Part No SS30V-R400028
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.8 mH @ 1 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 70mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.220" L x 0.886" W (31.00mm x 22.50mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS30V
Other Names 399-10595
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276777-SS30V-R400028
Ultra Librarian 3D Model Ultra Librarian SS30V-R400028 CAD Model

Description

The SS30V-R400028 is a common mode choke from KEMET's SS series designed for use in power line filters.

  • Series: SS series
  • Voltage Rating: 250V AC
  • Current (Max): 4A
  • Mounting Type: Through-Hole
  • Package/Case: Vertical, 4 PC pin
  • Height: 1.339 inches (34.00mm)
  • Lines: 2
  • Inductance: 2.8 mH @ 1 kHz
  • DC Resistance (DCR): 70mOhm maximum
  • Operating Temperature: -25°C to 120°C
