Same model may have multiple batches, images only for reference.

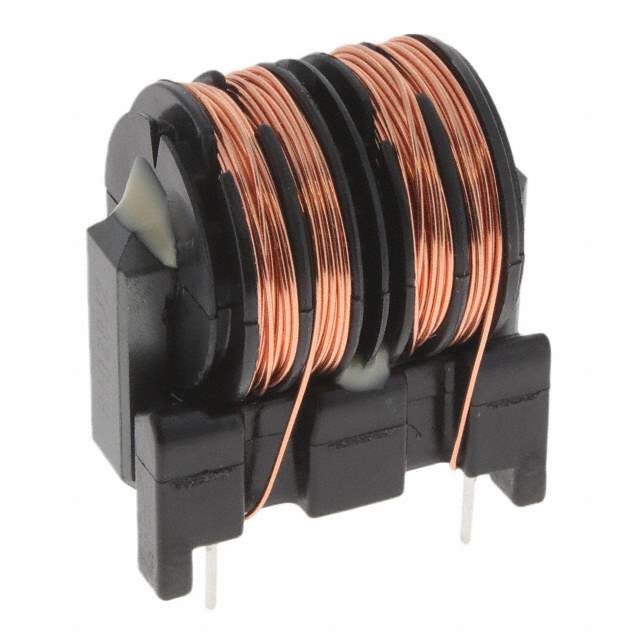

SS30V-R100700 Real Image
Same model may have multiple batches, images only for reference.

SS30V-R100700

Part No SS30V-R100700
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 70 mH @ 1 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 1.1Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.220" L x 0.886" W (31.00mm x 22.50mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS30V
Other Names 399-SS30V-R100700
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276715-SS30V-R100700
Ultra Librarian 3D Model Ultra Librarian SS30V-R100700 CAD Model

Description

The SS30V-R100700 from KEMET is a common mode choke that is used in various power line filter applications.

  • Voltage Rating: 250V AC
  • Maximum Current: 1A
  • Mounting Type: Through-hole
  • Package/Case: Vertical 4 PC pin
  • Inductance: 70 mH @ 1 kHz
  • DC Resistance (DCR): 1.1 Ohm
  • RoHS Compliant: Yes
  • Temperature Range: -25°C to 120°C
