Same model may have multiple batches, images only for reference.

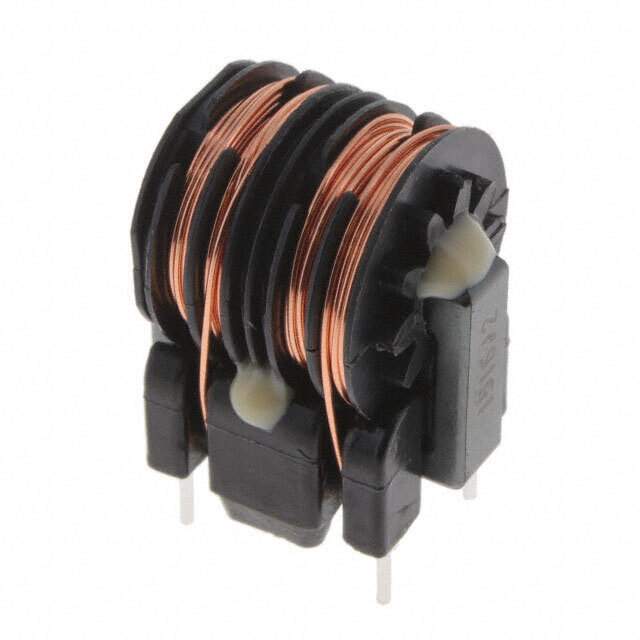

SS21V-150038 Real Image
Same model may have multiple batches, images only for reference.

SS21V-150038

Part No SS21V-150038
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3.8 mH @ 1 kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 300mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.811" L x 0.661" W (20.60mm x 16.80mm)
Height (Max) 1.004" (25.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS21V
Other Names 399-SS21V-150038
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276722-SS21V-150038
Ultra Librarian 3D Model Ultra Librarian SS21V-150038 CAD Model

Description

The KEMET SS21V-150038 is a power line common mode choke from the SS series.

  • Mounting: Through-hole
  • Package/Case: 4 PC pin, which is mounted vertically
  • Voltage Rating: 250V AC
  • Maximum Current Rating: 1.5A
  • Inductance: 3.8mH @ 1kHz
  • DC Resistance (DCR): 300mOhm
  • Designed for: Use in filters, specifically common mode chokes
  • Height: 25.50mm
  • Dimension: 20.60mm x 16.80mm
  • Temperature Range: -25°C to 120°C
  • Standard Package: 100 units in tray
  • REACH: Unaffected
  • ECCN: EAR99
