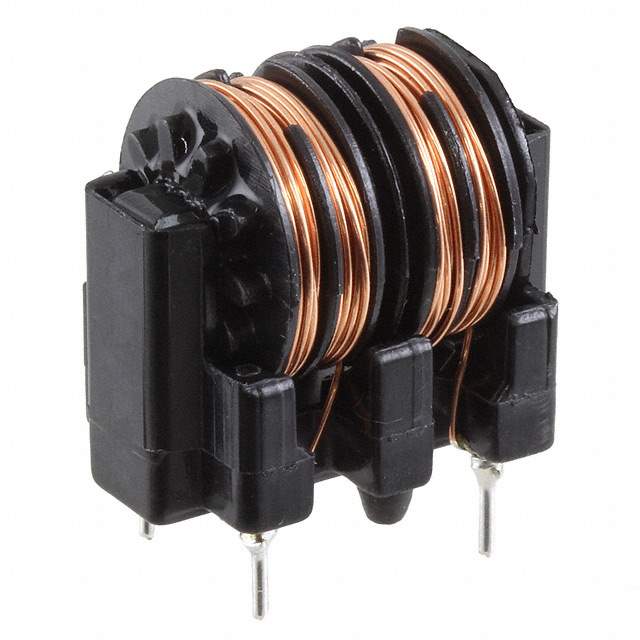

SS11V-R10093-CH Real Image
Same model may have multiple batches, images only for reference.

SS11V-R10093-CH

Part No SS11V-R10093-CH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 9.3 mH @ 1 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 440mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.866" L x 0.571" W (22.00mm x 14.50mm)
Height (Max) 0.886" (22.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS11V
Other Names UAL11VR10093CH,399-10748
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276739-SS11V-R10093-CH
Ultra Librarian 3D Model Ultra Librarian SS11V-R10093-CH CAD Model

Description

The KEMET SS is a common mode choke that is designed for use in power line filters.

  • Voltage Rating: 250V AC
  • Current Rating: 1A
  • Package Type: Bulk
  • Mounting Type: Through-hole
  • Height: 0.886 inches
  • Lines: Two lines
  • Inductance @ Frequency: 9.3 mH @ 1 kHz
  • DC Resistance: 440 mOhm
  • Designed for Temperature Range: -25°C to 120°C
  • Dimension: 0.866 inches L x 0.571 inches W
  • Reliable and efficient solution for: Power line filtering
