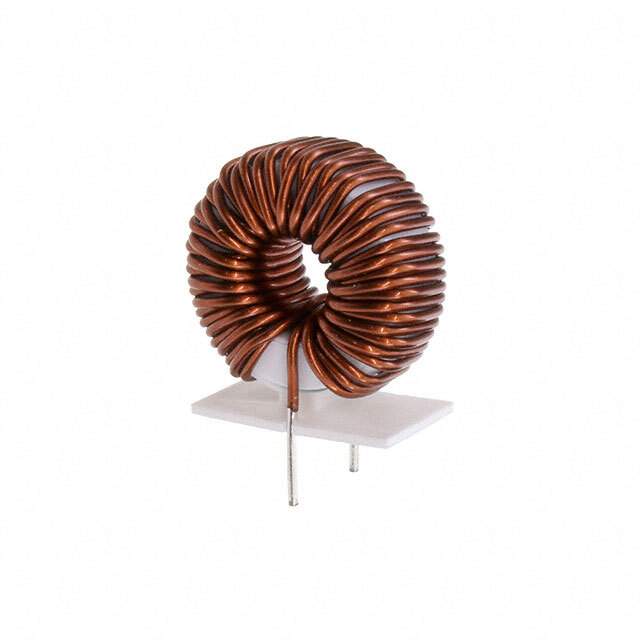

SN12-500J Real Image
Same model may have multiple batches, images only for reference.

SN12-500J

Part No SN12-500J
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN12-500J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 100 µH @ 100 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 45mOhm
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.102" L x 0.669" W (28.00mm x 17.00mm)
Height (Max) 1.142" (29.00mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SN12
Other Names 399-20586,UALSN12500J000
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276834-SN12-500J
Ultra Librarian 3D Model Ultra Librarian SN12-500J CAD Model

Description

The KEMET SN Common Mode Choke is a power line filter that is designed to provide high-quality filtering for electronic circuits.

  • Lines: Two lines
  • Inductance: 100 µH @ 100 kHz
  • DC Resistance: 45mOhm
  • Maximum Current Rating: 5A
  • Mounting: Through-hole mounting
  • Package/Case: Vertical, 2 PC pin
  • Package Dimensions: 1.102" L x 0.669" W (28.00mm x 17.00mm)
  • Height: 1.142" (29.00mm)
  • Operating Temperature Range: -25°C ~ 105°C
