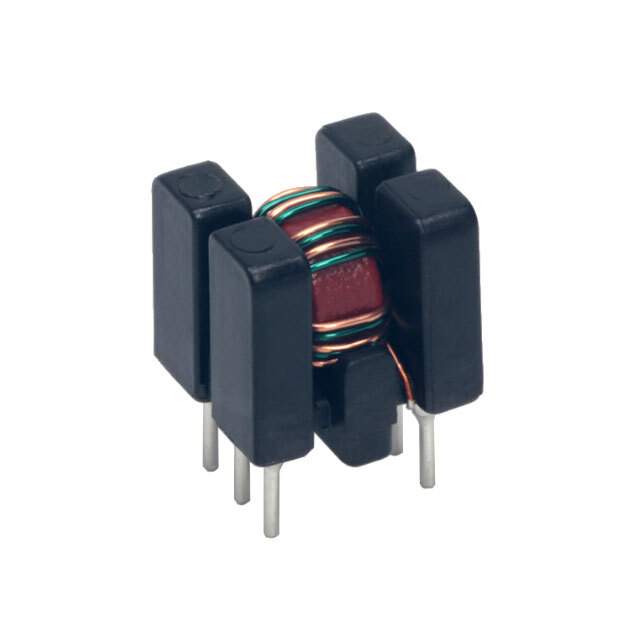

SH-102 Real Image
Same model may have multiple batches, images only for reference.

SH-102

Part No SH-102
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SH
Package Bulk
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 26mOhm
Voltage Rating - DC 150V
Temperature Range - Operating -25°C ~ 80°C
Mounting Type Through Hole
Height (Max) 0.472" (12.00mm)
Package / Case Vertical, 4 PC Pin
Other Names UDLSH001020000,399-19653
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276859-SH-102
Ultra Librarian 3D Model Ultra Librarian SH-102 CAD Model

Description

The KEMET SH series common mode choke is a power line filter used to suppress common mode noise.

  • Manufacturer:KEMET
  • Series: SH
  • Filter Type: Power Line
  • Mounting Type: Through-Hole
  • DC Resistance (Max): 26mOhm
  • Current Rating: 3A
  • Package/Case: Vertical, 4 PC pin
  • Height: 0.472" (12.00mm)
  • Lines: 2
  • Temperature Range: -25°C to 80°C
  • Standard Package: 1,000
  • Voltage Rating (DC): 150V
