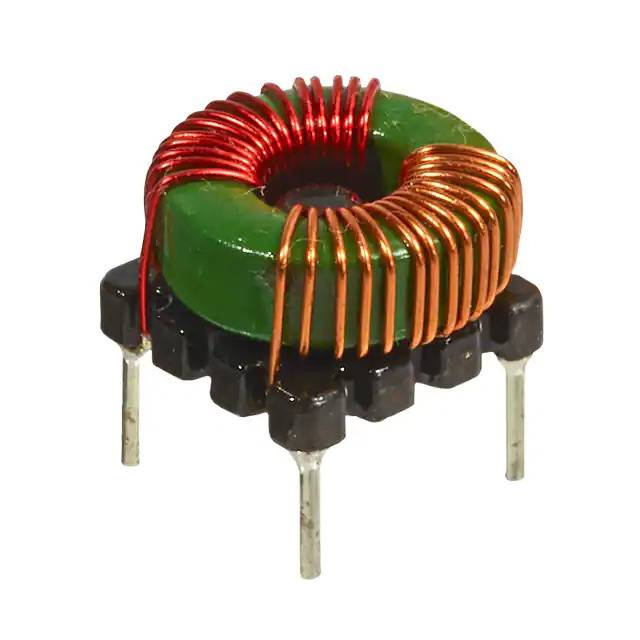

TCK-048 Traco Power
Same model may have multiple batches, images only for reference.

TCK-048

Part No TCK-048
Manufacturer Traco Power
Catalog Common Mode Chokes
Description CMC 450UH 5.2A 2LN TH / 450 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 5.2A DCR 25mOhm
Datasheet
TCK-048 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Traco Power
Series -
Package Bag
Product Status Active
Filter Type -
Number of Lines 2
Inductance @ Frequency 450 µH @ 100 kHz
Current Rating (Max) 5.2A
DC Resistance (DCR) (Max) 25mOhm
Voltage Rating - DC 500V
Voltage Rating - AC -
Temperature Range - Operating -40°C ~ 125°C
Ratings -
Approval Agency -
Features -
Mounting Type Through Hole
Height (Max) 0.386" (9.80mm)
Package / Case Horizontal, 4 PC Pin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1352385-TCK-048
Ultra Librarian 3D Model Ultra Librarian TCK-048 CAD Model

Description

The TCK-048 is a common mode choke designed for use in filters.

  • Temperature Range: -40°C to 125°C
  • Maximum Voltage: 500V DC
  • Maximum Current: 5.2A
  • Package: Horizontal, 4 PC Pin
  • Mounting Type: Through Hole
  • Height: 0.386" (9.80mm)
  • Agency Approvals: Various
