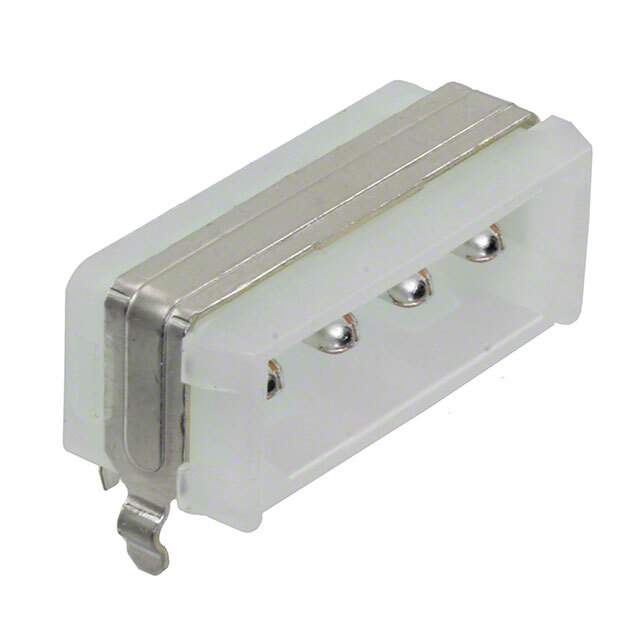

174552-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Commercial MATE-N-LOK
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.200" (5.08mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.161" (4.09mm)
Insulation Height 0.346" (8.80mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Lock
Temperature Range - Operating -20°C ~ 105°C
Material Flammability Rating UL94 V-2
Current Rating (Amps) 10A
Voltage Rating 250VAC
Applications General Purpose
Base Product Number 174552
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A121326,-174552-1-SI,174552-1-ND
Standard Package 200
Win Source Part Number 1015600-174552-1
Ultra Librarian 3D Model Ultra Librarian 174552-1 CAD Model

Description

The Commercial MATE-N-LOK connector is a high-quality header connector designed for use in a variety of applications.

  • Positions: 4
  • Board Lock: Yes
  • Material: Copper Alloy
  • Voltage Rating: 250VAC
  • Pitch: 0.200" (5.08mm)
  • Finish: Tin
  • Termination: Soldering
  • Shrouding: Shrouded - 4 Wall
  • Packaging: Bulk
  • Operating Temperature: -20°C to 105°C
