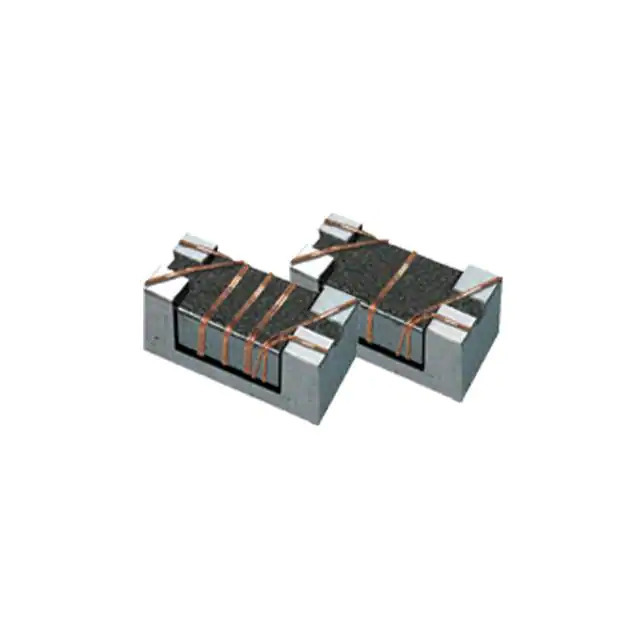

Same model may have multiple batches, images only for reference.

BWCU00121008900Y03

Name: BWCU00121008900Y03
Brand: Pulse
SKU: 1369406
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BWCU00121008900Y03
Manufacturer	Pulse
Catalog	Common Mode Chokes
Description	CMC 250MA 2LN 90 OHM SMD
Datasheet	BWCU00121008900Y03 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Common Mode Chokes
Mfr	Pulse Electronics
Series	BWCU_02
Package	Tape & Reel
Product Status	Active
Filter Type	-
Number of Lines	2
Impedance @ Frequency	90 Ohms @ 100 MHz
Current Rating (Max)	250mA
DC Resistance (DCR) (Max)	300mOhm
Voltage Rating - DC	50V
Voltage Rating - AC	-
Temperature Range - Operating	-40°C ~ 105°C
Ratings	-
Approval Agency	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max)	0.035" (0.90mm)
Package / Case	Horizontal, 6 PC Pad
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	1369406-BWCU00121008900Y03
Ultra Librarian 3D Model	Ultra Librarian BWCU00121008900Y03 CAD Model

Description

The 1369406-BWCU00121008900Y03 is a common mode choke filter manufactured by Pulse Electronics.

Series: BWCU_02
Packaging: Tape & Reel (TR)
Operating Temperature: -40°C ~ 105°C
Voltage Rating DC: 50V DC
Size / Dimension: 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height - Seated (Max): 0.035" (0.90mm)
Impedance @ Frequency: 90 Ohms @ 100 MHz
Current Rating (Max): 250mA
DC Resistance (DCR) (Max): 300mOhm Max
REACH Status: Unaffected
ECCN: EAR99
Product Status: Active
