Same model may have multiple batches, images only for reference.

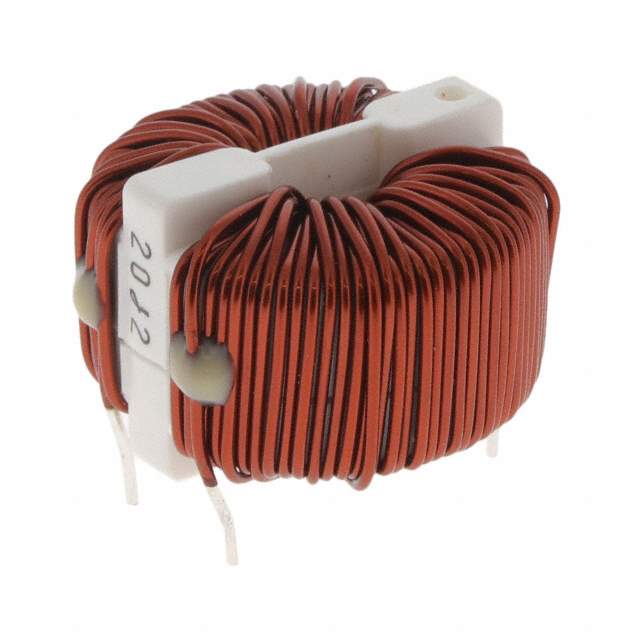

SC22-04-95H Real Image
Same model may have multiple batches, images only for reference.

SC22-04-95H

Part No SC22-04-95H
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 9.45 mH @ 10 kHz
Current Rating (Max) 4.3A
DC Resistance (DCR) (Max) 80mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.181" Dia (30.00mm)
Height (Max) 0.748" (19.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC22-04
Other Names UALSC220495H00,399-SC22-04-95H
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277022-SC22-04-95H
Ultra Librarian 3D Model Ultra Librarian SC22-04-95H CAD Model

Description

This power line filter is a common mode choke designed to filter out unwanted noise from electrical circuits.

  • Voltage Rating: 250V AC and DC
  • Maximum Current: 4.3A
  • Inductance @ 10kHz: 9.45mH
  • DC Resistance: 80mOhm
  • Mounting Type: Through-hole
  • Package/Case: Horizontal, no-base, 4 PC pin
  • Operating Temperature Range: -25°C to 120°C
  • Dimension: 1.181 inches in diameter (30.00mm)
  • Series: SC series of common mode chokes from KEMET
