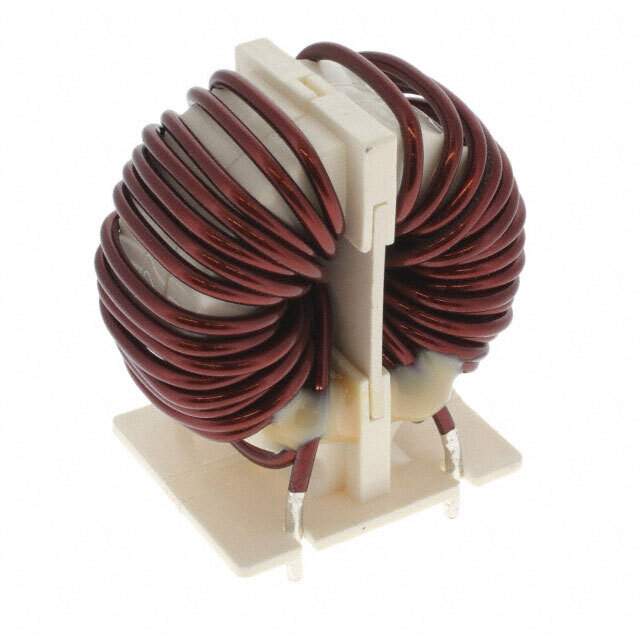

SC-18-085J Real Image
Same model may have multiple batches, images only for reference.

SC-18-085J

Part No SC-18-085J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 850 µH @ 10 kHz
Current Rating (Max) 18A
DC Resistance (DCR) (Max) 6mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.417" L x 0.984" W (36.00mm x 25.00mm)
Height (Max) 1.378" (35.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-18
Other Names 399-SC-18-085J,UALSC18085J000
Standard Package 180
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276933-SC-18-085J
Ultra Librarian 3D Model Ultra Librarian SC-18-085J CAD Model

Description

The SC-18-085J is a common mode choke with a filter type of power line.

  • Voltage Rating: 250V AC/DC
  • Maximum Current Rating: 18A
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Inductance: 850 µH @ 10 kHz
  • DC Resistance (DCR): 6mOhm max
  • Temperature Range: 25°C to 120°C
