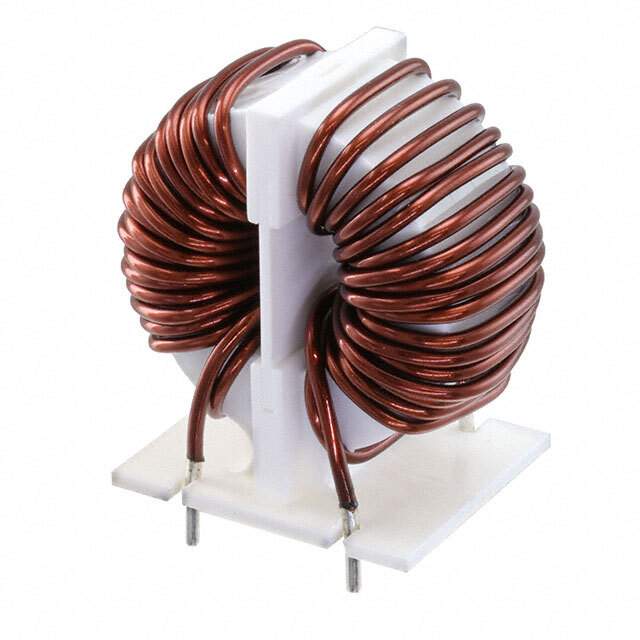

SC-12-15J Real Image
Same model may have multiple batches, images only for reference.

SC-12-15J

Part No SC-12-15J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.5 mH @ 100 kHz
Current Rating (Max) 12A
DC Resistance (DCR) (Max) 18mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.654" L x 1.142" W (42.00mm x 29.00mm)
Height (Max) 1.732" (44.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-12
Other Names 399-SC-12-15J
Standard Package 40
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277009-SC-12-15J
Ultra Librarian 3D Model Ultra Librarian SC-12-15J CAD Model

Description

KEMET's 1277009-SC-12-15J is a common mode choke filter belonging to the category of power line filters.

  • Lines: Two-line component
  • Maximum Current Rating: 12A
  • Height: 44.00mm
  • Standard Package: 40 pieces
  • Voltage Rating: 250V AC and 250V DC
  • Inductance: 1.5 mH @ 100 kHz
  • Mounting Type: Through-hole
  • Package: Vertical, 4 PC pin
  • Temperature Range: Between 25°C to 105°C
