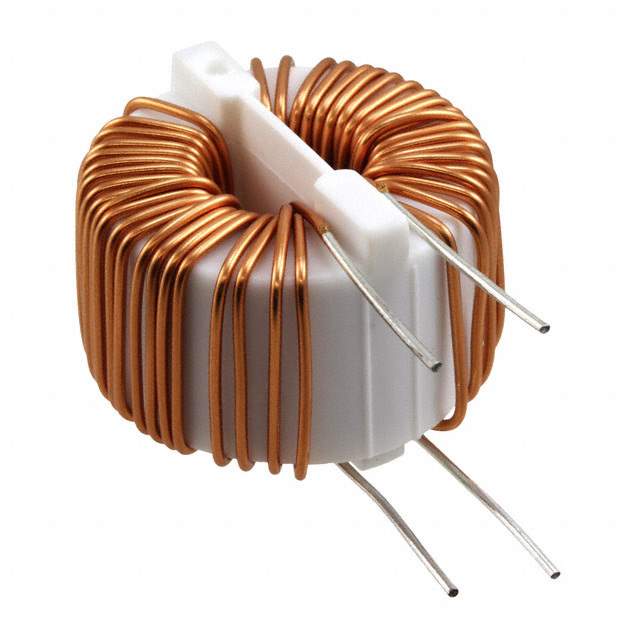

SC-05-300 Real Image
Same model may have multiple batches, images only for reference.

SC-05-300

Part No SC-05-300
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3 mH @ 100 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 55mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.260" Dia (32.00mm)
Height (Max) 1.260" (32.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-05
Other Names 399-SC-05-300,UALSC053000000
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277051-SC-05-300
Ultra Librarian 3D Model Ultra Librarian SC-05-300 CAD Model

Description

The KEMET SC-05-300 is a power line common mode choke with a maximum current rating of 5A. This common mode choke is ideal for use in filters for power lines.

  • Maximum Current Rating: 5A
  • Inductance: 3 mH @ 100 kHz
  • DC Resistance: 55mOhm
  • Package: Vertical, no base, 4 PC pin
  • Dimension: 1.260 inches (32.00mm) in diameter and 1.260 inches (32.00mm) in height
