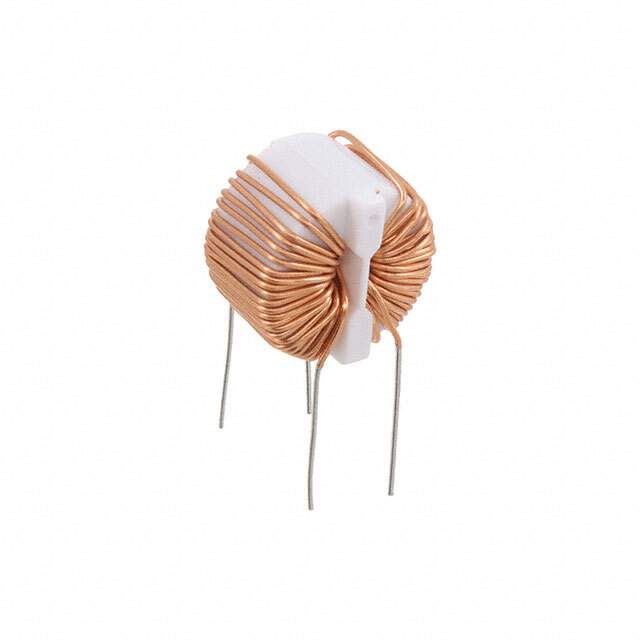

SC-04-500 Real Image
Same model may have multiple batches, images only for reference.

SC-04-500

Part No SC-04-500
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 5 mH @ 10 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 70mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.142" Dia (29.00mm)
Height (Max) 1.142" (29.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-04
Other Names 399-SC-04-500,UALSC045000000
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277044-SC-04-500
Ultra Librarian 3D Model Ultra Librarian SC-04-500 CAD Model

Description

The KEMET SC-04-500 is a common mode choke filter designed for use in power line applications. This filter is a part of the SC series, and comes in bulk packaging with a standard package of 300.

  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 4A
  • Height: 29.00mm
  • Diameter: 1.142"
  • Mounting: Through hole
  • Package: Vertical, no base, and 4 PC pin
  • Inductance: 5mH @ 10 kHz
  • DC Resistance (DCR): 70mOhm
  • Temperature Range: -25°C to 105°C
  • Packaging: Bulk
  • Standard Package: 300
