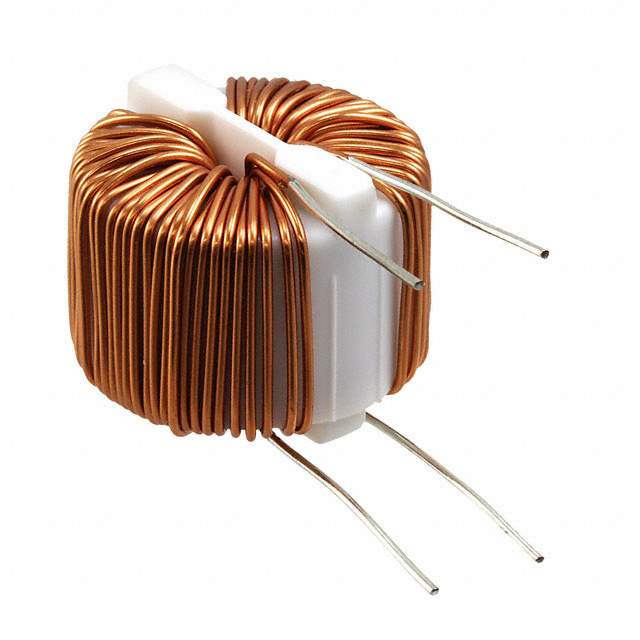

SC-02-500 Real Image
Same model may have multiple batches, images only for reference.

SC-02-500

Part No SC-02-500
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 5 mH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 100mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.063" Dia x 0.787" W (27.00mm x 20.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-02
Other Names UALSC025000000,399-10608
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277041-SC-02-500
Ultra Librarian 3D Model Ultra Librarian SC-02-500 CAD Model

Description

The KEMET 1277041-SC-02-500 is a common mode choke filter designed to minimize electromagnetic interference (EMI) in power line applications. This filter is part of the SC series, which is known for its excellent filtering capabilities.

  • Voltage Rating: 250V AC/DC
  • Maximum Current Rating: 2A
  • Inductance: 5mH @ 100kHz
  • DC Resistance (DCR): 100mOhm max
  • Mounting: Through hole
  • Package/Case: Vertical, no base, and 4 PC pin
  • Temperature Range: -25°C to 105°C
  • Diameter: 1.063”
  • Width: 0.787”
  • Packaging: Bulk
  • Standard Package: 300
