Same model may have multiple batches, images only for reference.

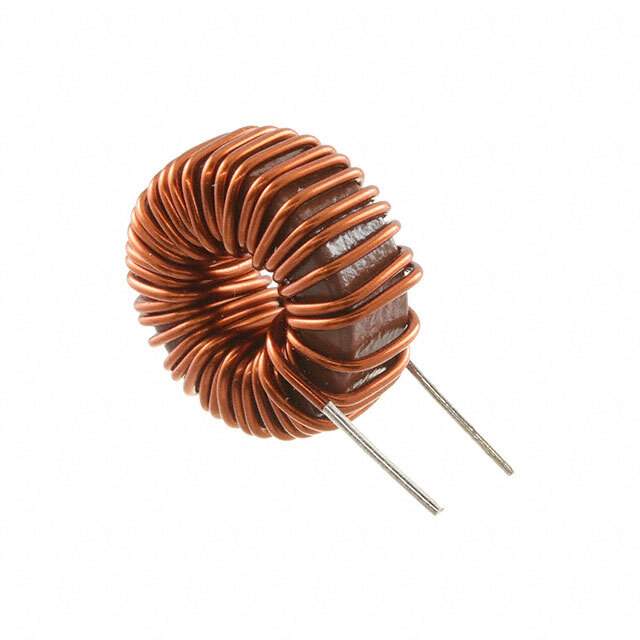

HHBC10-0R8A0068V Real Image
Same model may have multiple batches, images only for reference.

HHBC10-0R8A0068V

Part No HHBC10-0R8A0068V
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series HHBC
Package Bulk
Number of Lines 2
Inductance @ Frequency 68 µH @ 100 kHz
Current Rating (Max) 3A
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Dimension 0.846" Dia (21.50mm)
Package / Case Vertical, No Base, 2 PC Pin
Base Product Number HHBC10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1315154-HHBC10-0R8A0068V
Ultra Librarian 3D Model Ultra Librarian HHBC10-0R8A0068V CAD Model

Description

The HHBC10-0R8A0068V is a common mode choke filter from KEMET's HHBC series. HHBC10-0R8A0068V from KEMET

  • Series: HHBC
  • Mounting Type: Through Hole
  • Package/Case: Vertical, No Base, 2 PC Pin
  • Number of Lines: 2
  • Inductance: 68 μH @ 100 kHz
  • Maximum Current: 3A
  • Operating Temperature: -40°C ~ 125°C
  • Win Source Part Number: 1315154-HHBC10-0R8A0068V
