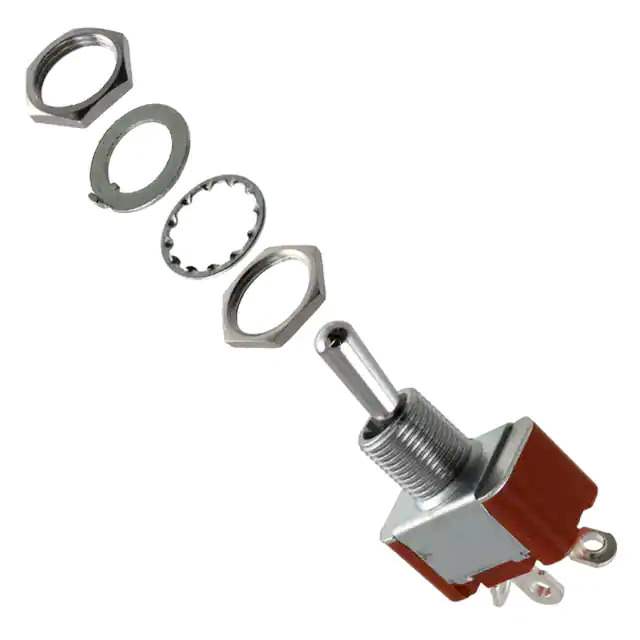

S305 Real Image
Same model may have multiple batches, images only for reference.

S305

Part No S305
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 15A 125V / Toggle Switch SPDT Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr NKK Switches
Series S300
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC), 20A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Temperature Range - Operating -10°C ~ 70°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 932779-S305
Ultra Librarian 3D Model Ultra Librarian S305 CAD Model

Description

The S300 series toggle switch with solder lug termination style is a high-quality electronic component manufactured by NKK Switches.

  • Voltage Rating: 125V AC and 30V DC
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Standard Round
  • Actuator Length: 17.50mm
  • Electrical Life: 25,000 cycles
  • Illumination: Non-Illuminated
  • Bushing Thread: M12 x 1
  • Mounting: Panel Mountable
  • Temperature Range: -10°C to 70°C
  • Compliance: ECCN regulations
  • Current Rating: 15A (AC) and 20A (DC)
  • Status: Active
