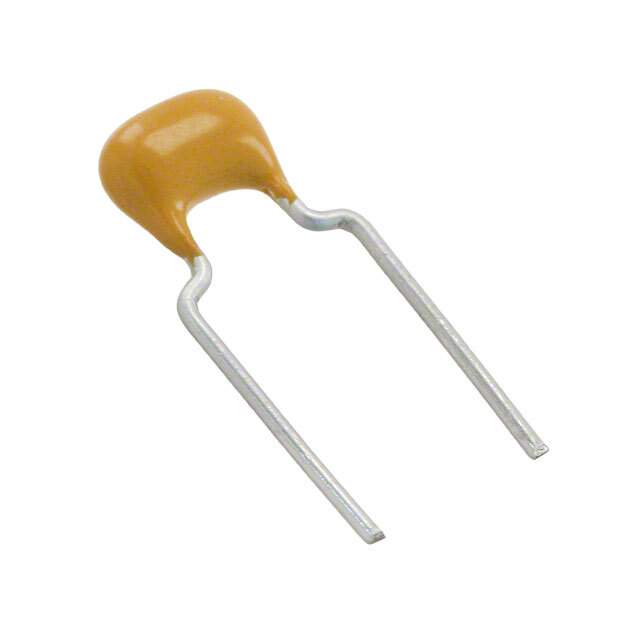

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series Goldmax, 300
Packaging Bulk
Capacitance 1000pF
Tolerance ±5%
Voltage Rating DC 1000V (1kV)
Temperature Coefficient C0G, NP0
Operating Temperature Range -55°C ~ 125°C
Features High Voltage
Applications General
Mounting Style Through Hole
Package Radial
Dimension 0.300" L x 0.250" W (7.62mm x 6.35mm)
Height - Seated (Maximum) 0.360" (9.14mm)
Lead Spacing 0.200" (5.08mm)
Lead Style Straight
Win Source Part Number 785083-C330C102JDG5TA
Popularity Medium
Supply and Demand Status Limited
Family Name C330
Introduction Date March 31, 2011
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian C330C102JDG5TA CAD Model

Description

The Kemet C330C102JDG5TA is a radial high voltage capacitor.

  • Capacitance: 1000pF
  • Tolerance: ±5%
  • Temperature Coefficient: C0G, NP0
  • Voltage Rating: 1000V (1kV)
  • Package Type: Bulk
  • Lead Spacing: 0.200" (5.08mm)
  • Temperature Range: -55°C ~ 125°C
  • Applications: Various electronic devices
  • Supply and Demand Status: Limited
  • EOL Date: 2030
