Same model may have multiple batches, images only for reference.

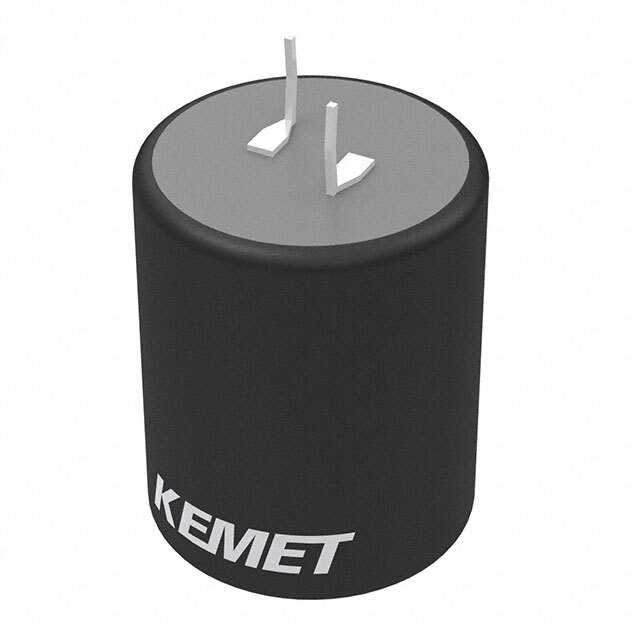

ALC80A103CD040 Real Image
Same model may have multiple batches, images only for reference.

ALC80A103CD040

Part No ALC80A103CD040
Manufacturer Kemet
Catalog Aluminum Capacitors
Description CAP ALUM 10000UF 20% 40V SNAP / 10000 µF 40 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 51mOhm @ 100Hz 7000 Hrs @ 105°C
Datasheet
ALC80A103CD040 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr KEMET
Series ALC80
Package Bulk
Capacitance 10000 µF
Tolerance ±20%
Voltage - Rated 40 V
ESR (Equivalent Series Resistance) 51mOhm @ 100Hz
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 6.51 A @ 100 Hz
Ripple Current @ High Frequency 9.23 A @ 10 kHz
Impedance 41 mOhms
Lead Spacing 0.394" (10.00mm)
Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Base Product Number ALC80A
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Other Names 399-19629
Standard Package 160
Win Source Part Number 1162015-ALC80A103CD040
Ultra Librarian 3D Model Ultra Librarian ALC80A103CD040 CAD Model

Description

The ALC80A103CD040 from KEMET is an aluminum electrolytic capacitor that is ideal for use in general-purpose applications.

  • Capacitance: 10000 μF
  • Voltage Rating: 40V
  • Type: Radial, can - snap-in
  • Tolerance: ±20%
  • Impedance: 41 mOhms
  • ESR @ 100Hz: 51mOhm
  • Lifetime @ Temperature: 7000 hours @ 105°C
  • Package Size: 160
  • Packaging: Bulk
  • Ripple Current @ 100 Hz (low frequency): 6.51 A
  • Ripple Current @ 10 kHz (high frequency): 9.23 A
  • Compliance: RoHS compliant
  • ECCN: EAR99
