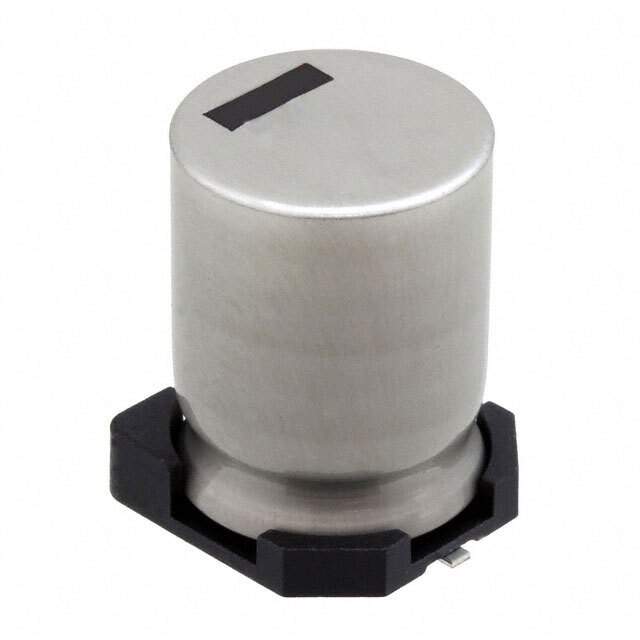

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TLV
Package Tape & Reel
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 1.398 A @ 120 Hz
Ripple Current @ High Frequency 2.33 A @ 100 kHz
Impedance 29 mOhms
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size 0.669" L x 0.669" W (17.00mm x 17.00mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 75
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1345605-35TLV2200M16X21.5
Ultra Librarian 3D Model Ultra Librarian 35TLV2200M16X21.5 CAD Model

Description

The Rubycon TLV series aluminum electrolytic capacitor is a reliable and high-quality component for automotive applications.

  • Capacitance: 2200 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Package: 75
  • AEC-Q200: true
  • ESR: not specified
  • Lifetime: 5000 hours @ 105°C
  • Polarization: polarized
  • Surface-Mount Land Size: 0.669" L x 0.669" W (17.00mm x 17.00mm)
  • Mounting Type: surface mount
  • Package/Case: radial, can - SMD
  • Operating Temperature: -55°C to 105°C
  • REACH Status: REACH unaffected
  • ECCN: EAR99
