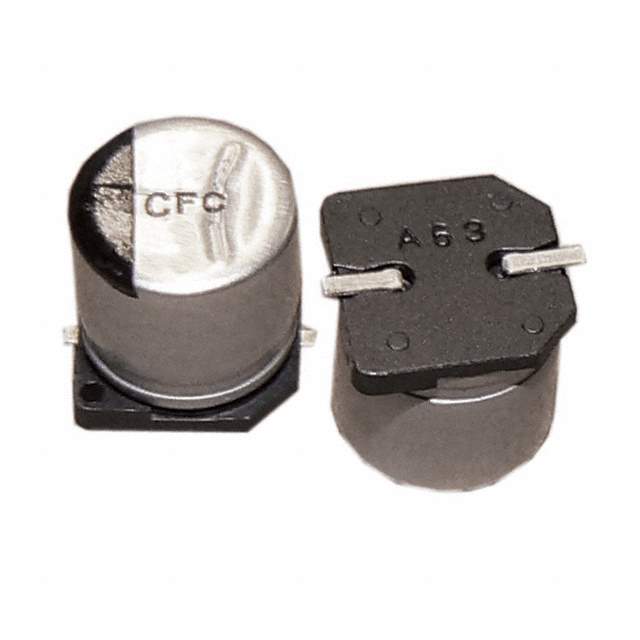

AFC687M16G24T-F Real Image
Same model may have multiple batches, images only for reference.

AFC687M16G24T-F

Part No AFC687M16G24T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description Cap Aluminum Lytic 680uF 16V 20% (10 X 10.2mm) SMD 0.4 Ohm 670mA 1000h 105°C Automotive T/R / CAP ALUM 680UF 20% 16V SMD
Datasheet
AFC687M16G24T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series AFC
Packaging Reel package
Capacitance 680μF
Tolerance ±20%
Voltage Rating DC 16V
ESR (Equivalent Series Resistance) 400 mOhm @ 120Hz
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 502.5mA @ 120Hz
Ripple Current - High Frequency 670mA @ 100kHz
Impedance 150 mOhm
Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.402" (10.20mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 785103-AFC687M16G24T-F
Popularity Medium
Supply and Demand Status Limited
Family Name AFC
Introduction Date March 05, 2002
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AFC687M16G24T-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) AFC series aluminum electrolytic capacitor from Cornell Dubilier Electronics (CDE).

  • Capacitance: 680μF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • ESR: 400 mOhm @ 120Hz
  • Package/Case: Radial, Can - SMD
  • Device Package: Reel
  • Mounting Type: SMD
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Height: 0.402" (10.20mm)
  • Diameter: 0.394" (10.00mm)
  • Applications: General Purpose
