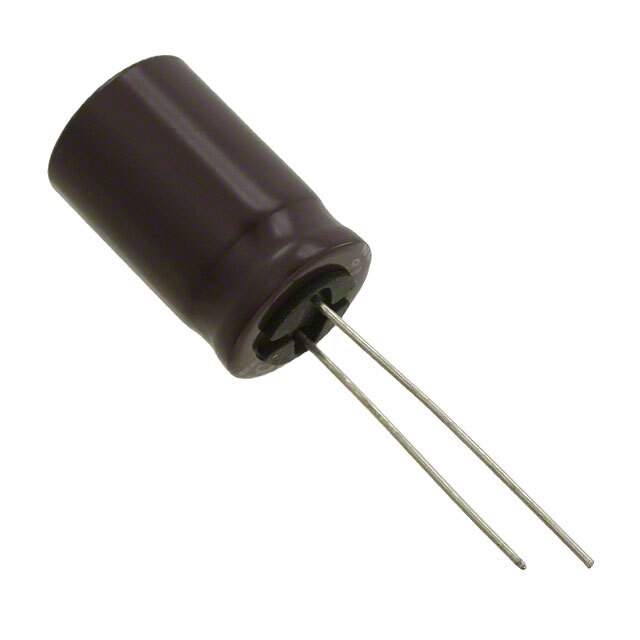

Same model may have multiple batches, images only for reference.

UCS2G220MHD

Name: UCS2G220MHD
Brand: Nichicon
SKU: 1345606
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCS2G220MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 400V RADIAL / 22 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet	UCS2G220MHD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCS
Package	Bulk
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	400 V
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	380 mA @ 120 Hz
Ripple Current @ High Frequency	760 mA @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.846" (21.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	1,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1345606-UCS2G220MHD
Ultra Librarian 3D Model	Ultra Librarian UCS2G220MHD CAD Model

Description

The Nichicon 1345606-UCS2G220MHD is a general-purpose aluminum electrolytic capacitor designed for use in various electronic devices.

Capacitance: 22 µF
Voltage Rating: 400 V
Tolerance: ±20%
Ripple Current: 380 mA @ 120 Hz and 760 mA @ 100 kHz
Mounting Type: through-hole
Package/Case: radial, can
