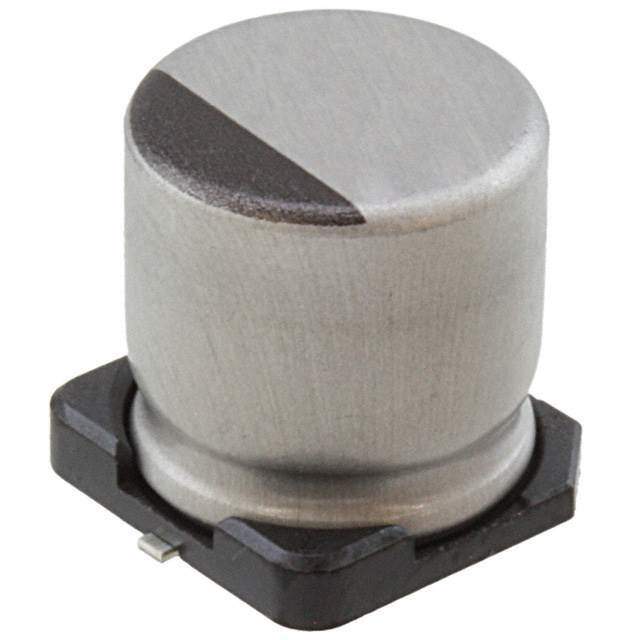

UWZ1E471MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UWZ1E471MCL1GS

Part No UWZ1E471MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 25V SMD / 470 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Datasheet
UWZ1E471MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWZ
Package Tape & Reel
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications High Temperature Reflow
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 450 mA @ 10 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1340739-UWZ1E471MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWZ1E471MCL1GS CAD Model

Description

This aluminum electrolytic capacitor is a high-temperature reflow electronic component that is ideal for use in various applications.

  • Series: UWZ
  • Capacitance: 470 µF
  • Voltage Rating: 25V
  • Package: Tape and Reel
  • Size and Dimension: 0.394 inches (Diameter)
  • Height - Seated (Max): 0.413 inches
  • Tolerance: ±20%
  • Polarization: Polar
  • Surface Mount Land Size: 0.406 inches (L) x 0.406 inches (W)
  • Mounting Type: Surface Mount
  • Package/Case: Radial, Can - SMD
  • Temperature Range: -55°C to 105°C
