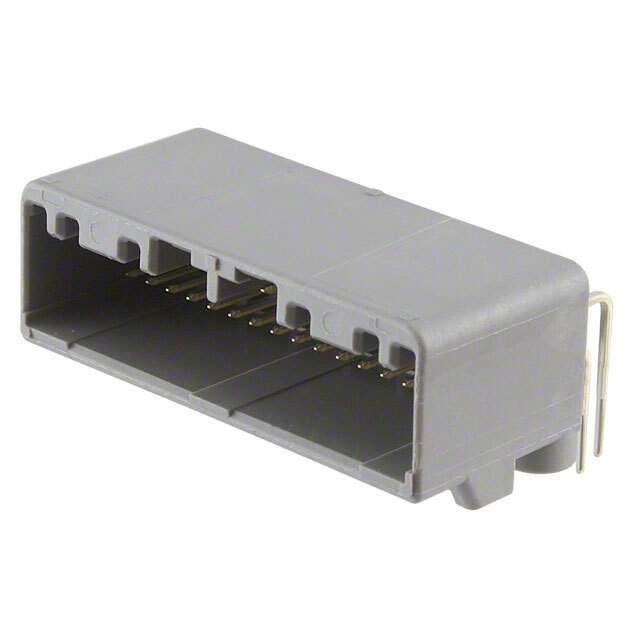

MX34032NF2 Real Image
Same model may have multiple batches, images only for reference.

MX34032NF2

Part No MX34032NF2
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER R/A 32POS 2.2MM / Compact Automotive Connectors for PCB-to-Cable Applications
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JAE Electronics
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 32
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.626" (15.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Mounting Flange
Temperature Range - Operating -40°C ~ 85°C
Insulation Color Gray
Current Rating (Amps) 3A
Applications Automotive
Manufacturer Pack Quantity 768
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806762-MX34032NF2
Ultra Librarian 3D Model Ultra Librarian MX34032NF2 CAD Model

Description

The JAE Electronics electronic component has a Win Source Part Number of 806762-MX34032NF2.

  • Product Type: Header Connector with Mounting Flange
  • Packaging: Tube
  • Positions: 32
  • Mounting Style: Through Hole, Right Angle
  • Connector Type: Male Pin
  • Positions Loaded: All
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Applications: Automotive
  • Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
  • Pitch-Mating: 0.087" (2.20mm)
  • Contact Finish-Mating and Post: Tin
  • Insulation Color: Gray
  • Shrouding: Shrouded - 4 wall
  • Row Spacing-Mating: 0.118" (3.00mm)
  • Contact Length-Post: 0.126" (3.20mm)
  • Insulation Height: 0.626" (15.90mm)
  • Contact Shape: Square
  • Temperature Range Operating: -40°C ~ 85°C
  • Contact Length-Mating: 0.303" (7.70mm)
  • Manufacturer Pack Quantity: 768
  • MSL Level: 1 (Unlimited)
  • Current Rating (amps): 3A
