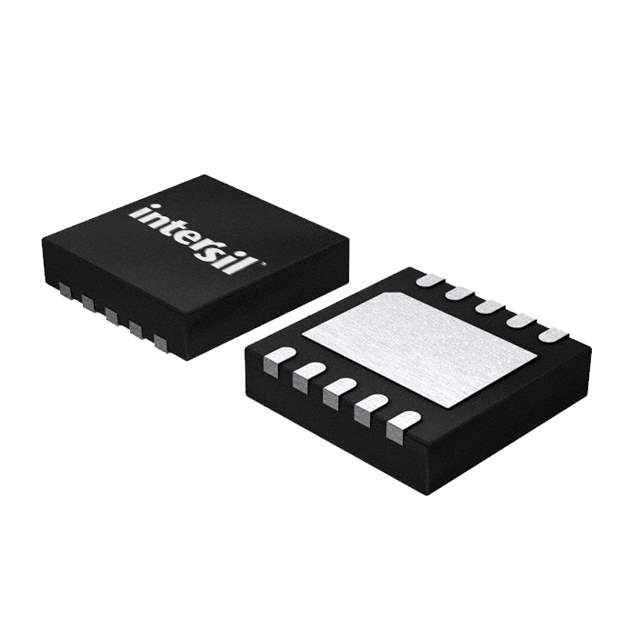

PX3511DDDG-RA

Name: PX3511DDDG-RA
Brand: Intersil
SKU: 284833
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PX3511DDDG-RA
Manufacturer	Intersil
Catalog	PMIC - Gate Drivers
Description	IC DRVR SYNC BUCK HF 10-DFN
Datasheet	PX3511DDDG-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Intersil
Packaging	Reel - TR
Status	Obsolete(EOL)
Driven Configuration	Half-Bridge
Channel Type	Synchronous
Number of Drivers	2
Gate Type	N-Channel MOSFET
Supply Voltage - Operating	6.8 V to 13.2 V
Current - Peak Output (Source, Sink)	1.25A, 2A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	36V
Rise and Fall Time	26ns, 18ns
Temperature Range - Operating	0°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	10-DFN (3x3)
Win Source Part Number	062228-PX3511DDDG-RA
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PX3511DDDG-RA CAD Model

Description

The Intersil 062228-PX3511DDDG-RA is a half-bridge synchronous channel type driver integrated circuit with two N-Channel MOSFETs.

Input type: non-inverting
Temperature range: 0°C to 125°C (TJ)
Peak output current: 1.25A (source) and 2A (sink)
High-side voltage: up to 36V (max)
Package: 10-DFN (3x3)
Operating voltage: 6.8 V to 13.2 V
Rise and fall time: 26ns and 18ns
