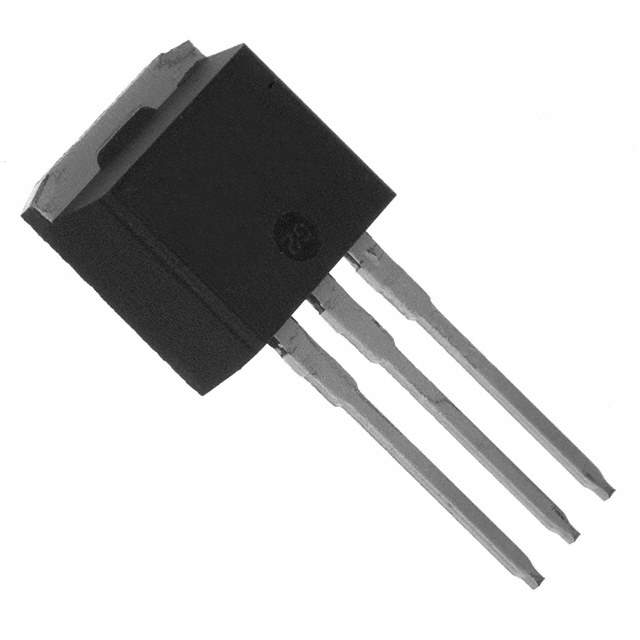

The 10CTQ150L is a Schottky Barrier Rectifier featuring high surge current capability and low forward voltage drop. Manufactured by International Rectifier (now Infineon Technologies), these rectifiers are designed for high-frequency switching power supplies and other applications where efficiency and fast switching are crucial. Their construction helps in minimizing power loss and improving overall system performance.

Applications:

• Switching Power Supplies: As a secondary rectifier in high-frequency switching power supplies.
• Freewheeling Diodes: Used as freewheeling diodes in inductive circuits to protect against voltage spikes.
• Polarity Protection: Provides reverse polarity protection in various electronic circuits.
• DC-DC Converters: Efficient rectification in DC-DC converters.
• Solar Power Systems: Used in solar panel junction boxes to prevent reverse current flow.

Features:

• Low Forward Voltage Drop: Reduces power loss and improves efficiency.
• High Surge Current Capability: Withstands high current surges, enhancing reliability.
• High-Frequency Operation: Suitable for high-frequency applications due to its fast switching speed.
• Guard Ring Protection: Provides protection against voltage transients.
• Low Power Loss: Minimizes heat generation and increases energy efficiency.
• RoHS Compliant: Environmentally friendly due to compliance with RoHS standards.

Benefits:

• Increased System Efficiency: Low forward voltage drop minimizes power dissipation, leading to higher efficiency.
• Improved Reliability: High surge current capability ensures robustness in demanding applications.
• Reduced Heat Dissipation: Low power loss translates to less heat generation, simplifying thermal management.
• Enhanced Protection: Guard ring protection enhances device reliability by protecting against voltage transients.
• Compact Design: Allows for smaller and more compact power supply designs.

Additional Details:

The 10CTQ150L has a maximum repetitive peak reverse voltage (VRRM) of 150V and a maximum average forward rectified current (IF(AV)) of 10A. Its low forward voltage drop (VF) is typically around 0.7V at 5A. The device is commonly available in a TO-220AC package. Detailed datasheets from Infineon provide comprehensive information on electrical characteristics, thermal resistance, and mounting recommendations. The Schottky barrier construction minimizes the stored charge, enabling very fast switching speeds. This rectifier is an excellent choice for applications requiring high efficiency and reliability in a compact package.
