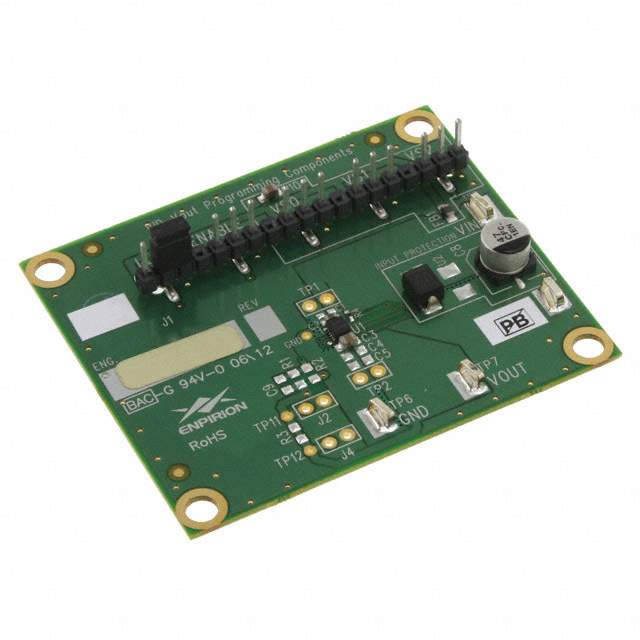

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr Intel
Series Enpirion®
Package Box
Product Status Obsolete
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 0.8V, 1.05V, 1.1V, 1.15V, 1.2V, 1.45 or 1.5V
Current - Output 600mA
Voltage - Input 2.4V ~ 5.5V
Regulator Topology Buck
Frequency - Switching 5MHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part EP5357LUI
Base Product Number EP5357
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Other Names 544-2935,EP5357LUI-E,EVB-EP5357LUI-ND
Standard Package 1
Win Source Part Number 1133879-EVB-EP5357LUI
Ultra Librarian 3D Model Ultra Librarian EVB-EP5357LUI CAD Model

Description

The Intel EVB-EP5357LUI is an evaluation board for DC/DC and AC/DC (Off-Line) SMPS.

  • Topology: Buck regulator
  • Output Voltages: 0.8V, 1.05V, 1.1V, 1.15V, 1.2V, 1.45V, or 1.5V
  • Current Output: 600mA
  • Voltage Input: 2.4V to 5.5V
  • IC/Part: EP5357LUI
  • Frequency Switching: 5MHz
  • Output Isolation: Non-isolated
