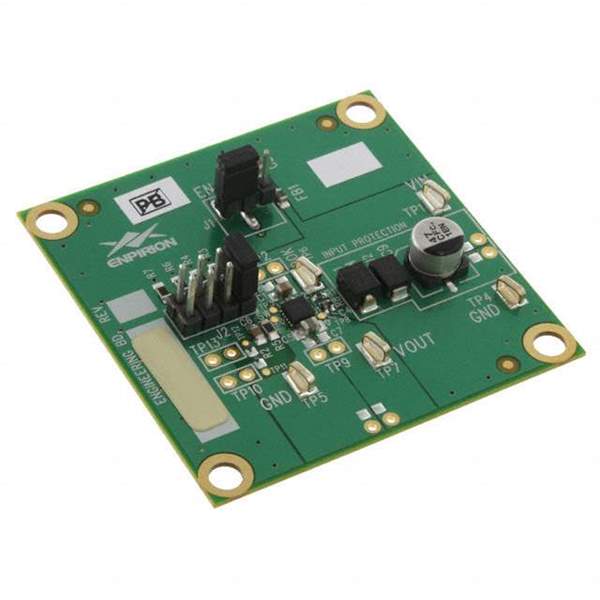

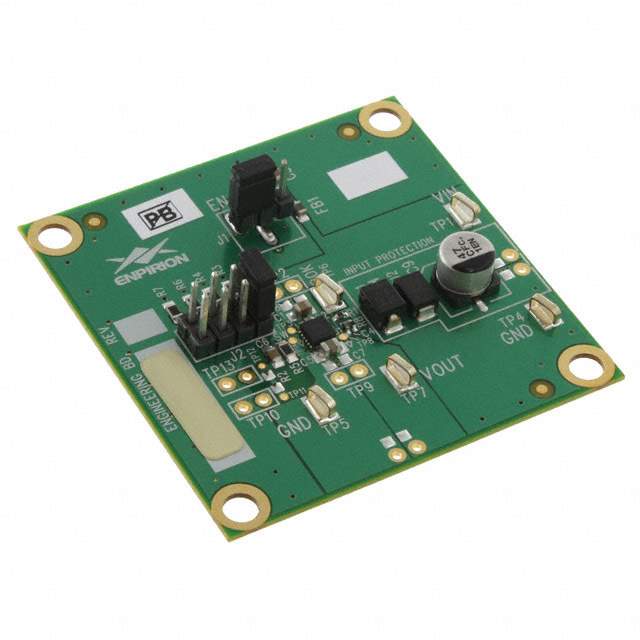

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Altera
Series Enpirion
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 1V, 1.2V, 1.8V or 3.7V
Output Current 1.5A
Voltage - Input 2.4 V ~ 5.5 V
Regulator Topology Buck
Frequency - Switching 4MHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part EP53F8QI
Win Source Part Number 773999-EVB-EP53F8QI
Popularity Medium
Supply and Demand Status Balance
Family Name EP53F8QI
ECCN EAR99
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian EVB-EP53F8QI CAD Model

Description

The Altera Enpirion DC/DC step-down regulator is a fully populated board with a voltage input range of 2.4 V to 5.5 V and output voltage options of 1V, 1.2V, 1.8V or 3.7V.

  • Topology: Buck
  • Input Voltage: 2.4 V to 5.5 V
  • Output Voltage: 1V, 1.2V, 1.8V or 3.7V
  • IC/Part: EP53F8QI
  • Output Current: 1.5A
  • Switching Frequency: 4MHz
  • Package Includes: board(s)
  • Category: Development Board, Kit, Programmer
  • Supply and Demand Status: Balanced
