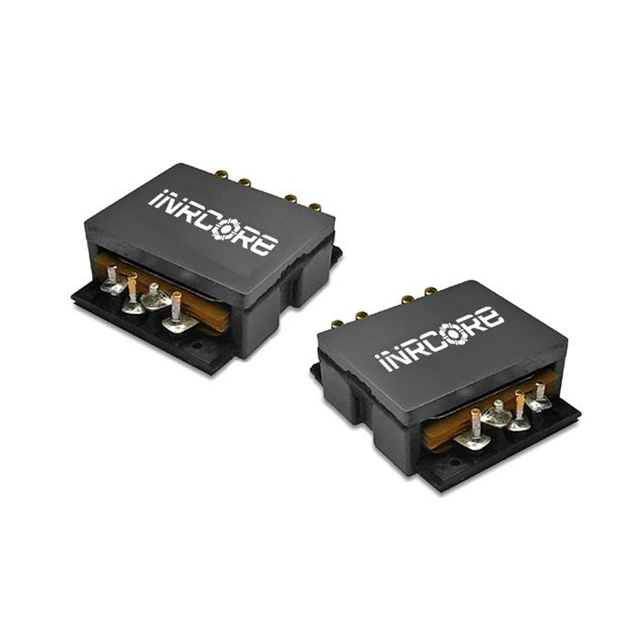

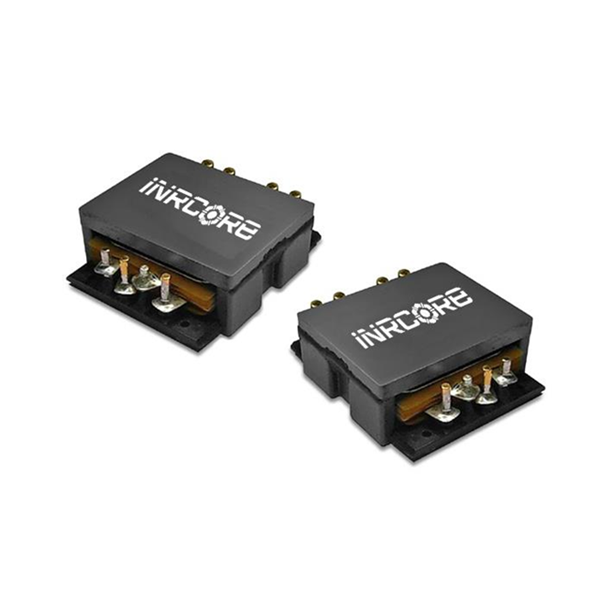

R8401NL iNRCORE, LLC – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

R8401NL

Part No R8401NL
Manufacturer iNRCORE, LLC
Catalog Power Transformers
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer iNRCORE, LLC
Packaging Tube
Type Planar
Primary Winding(s) Dual
Secondary Winding(s) Single, Multiple Taps
Center Tap No
Power - Max 300W
Mounting Type Surface Mount
Termination Style Solder, Quick Connect
Size / Dimension 29.47mm L x 26.67mm W
Height - Seated (Max) 10.40mm
Voltage - Isolation 1750VDC
RoHS Status ROHS3 Compliant
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1477534-R8401NL
Ultra Librarian 3D Model Ultra Librarian R8401NL CAD Model
